VC-TR120
120 mm Triple Light-Board LED Lighting System
VC-TR120 uses three RGBW light boards to distribute stronger illumination through large translucent products. Its high-capacity battery and multi-board layout suit oversized furniture, display structures and custom moulded projects that cannot be lit evenly by one compact module.
Common applications: 120 mm rechargeable LED light for rotomoulded furniture; 120 mm replacement LED unit for event furniture rental; 120 mm LED light module for acrylic displays; 120 mm rechargeable LED core for portable lamps.
- Diameter
- Ø 120 mm
- Battery
- 15,600 mAh
- Voltage
- 5 V
- Power
- 15.6 W
- LED configuration
- 3 × (24 RGB + 24 white LEDs)
- Colour control

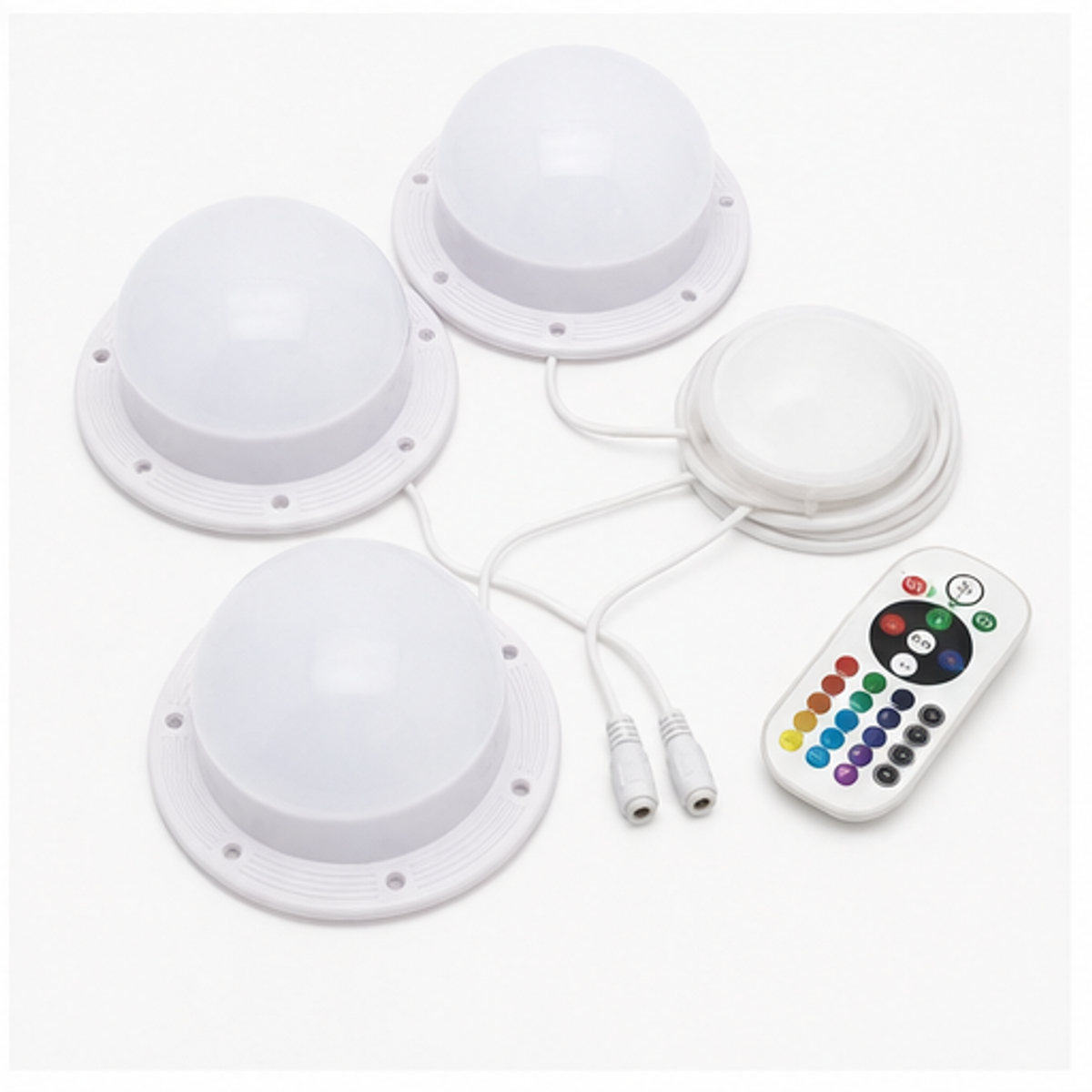

- Remote control / button, 16 colours
- Dynamic modes
- Flash, strobe, fade, smooth
- Typical operation
- Approx. 4–6 h charge, 8–12 h runtime*
*Runtime varies with brightness, mode, battery configuration and operating conditions. Waterproof performance requires correct product integration and sealing.
Replacing a light in existing furniture? Check compatibility before choosing a module →
Integration
Made to become part of your product.

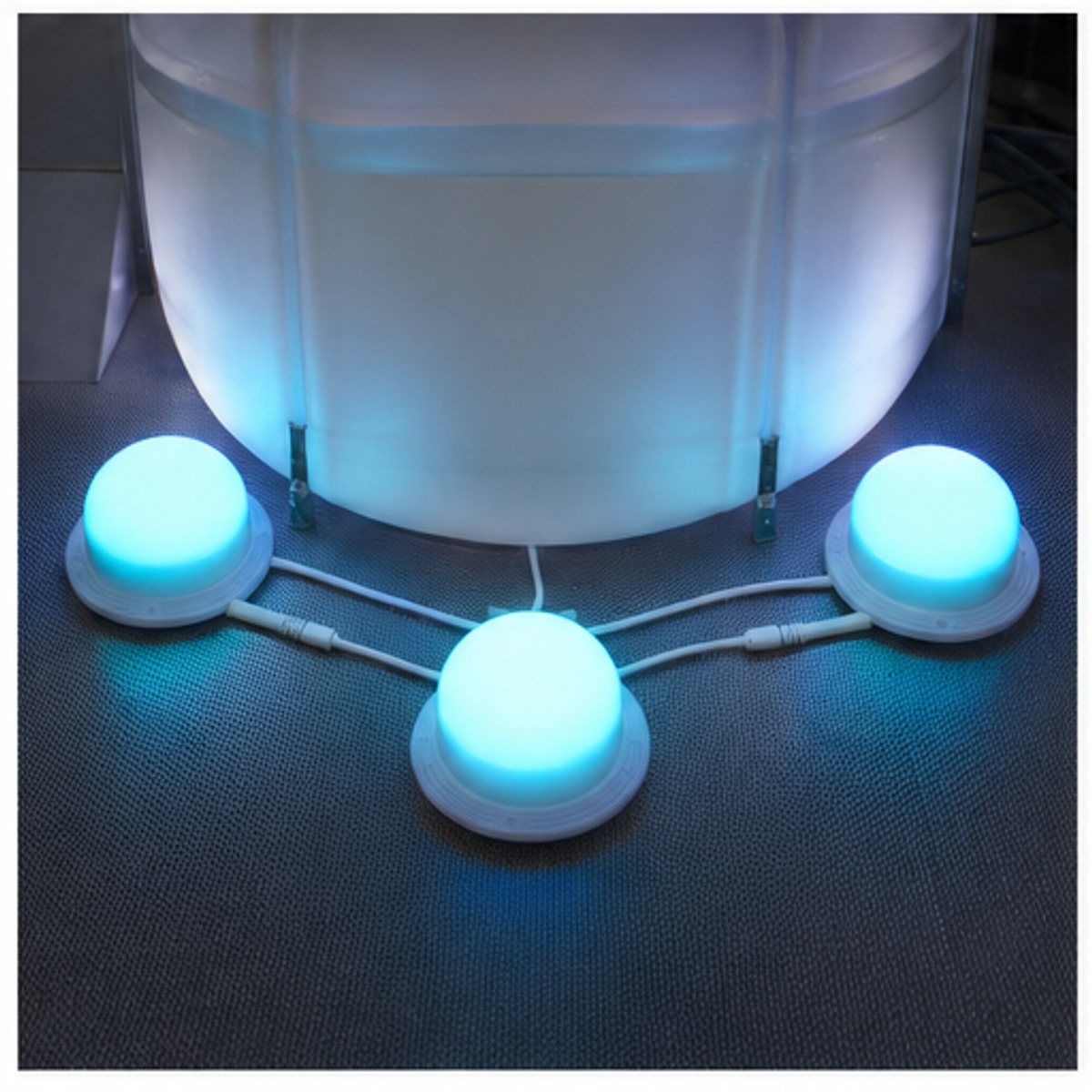

The module installs inside translucent PE shells, acrylic forms and purpose-built enclosures. We can review mounting position, light diffusion, control access, charging access and battery capacity against your product design.
- PE rotational-moulded furniture and décor
- Acrylic and translucent product housings
- Event, hospitality and outdoor applications
- OEM LED layout, battery and control options
Replacing a failed light in existing illuminated furniture? Compatibility depends on the original opening, mounting points, installation depth, charging method and electrical requirements.
Check replacement compatibility →Need CE, EMC, LVD, RoHS, waterproof, battery or adapter records for your selected configuration? Review the available LED module quality and compliance documents →
