Start with the approximate size
Tell us the outside diameter—such as 85 mm or 120 mm. An approximate measurement is enough to begin.

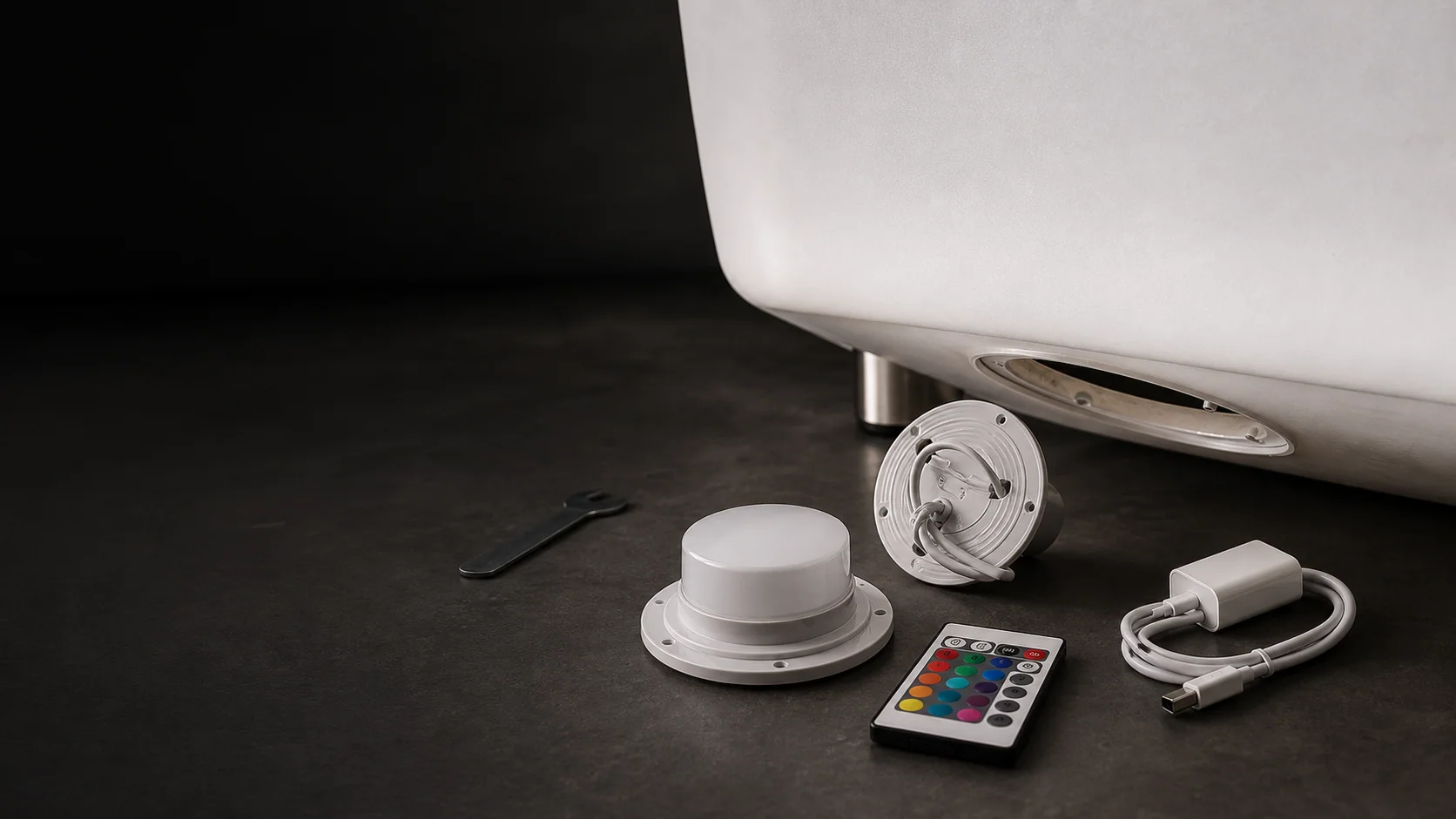

Replacement & retrofit solutions
Replacement LED Light Modules for Illuminated Furniture
Replace the light. Keep the furniture.
Find a suitable rechargeable RGB LED module for an existing illuminated table, chair, bar counter, planter, ice bucket or other translucent PE product.
A practical second life
The furniture can remain useful after its original light fails.
Batteries age, charging parts wear and older light modules can stop responding after years of use. Replacing the internal light engine can extend the working life of an otherwise serviceable illuminated product.
An unknown original model does not prevent an enquiry. Start with what you know; Vcan can review suitable module options before you order.
Replacement, not guesswork
Match the physical and electrical details before ordering.
A similar appearance does not guarantee compatibility. The replacement must fit the furniture opening, mounting points, available depth, charging arrangement and accessory system.
Compatibility process
Four steps to identify the right replacement direction.
Tell us what you know
Share the quantity and charging voltage if known. It is fine if the original model or other details are unknown.
Vcan reviews the match
We compare the basic information with our module platforms and identify what else matters.
Add a photo only if needed
We narrow the options first, then ask for a photo or one additional measurement only when confirmation is needed.

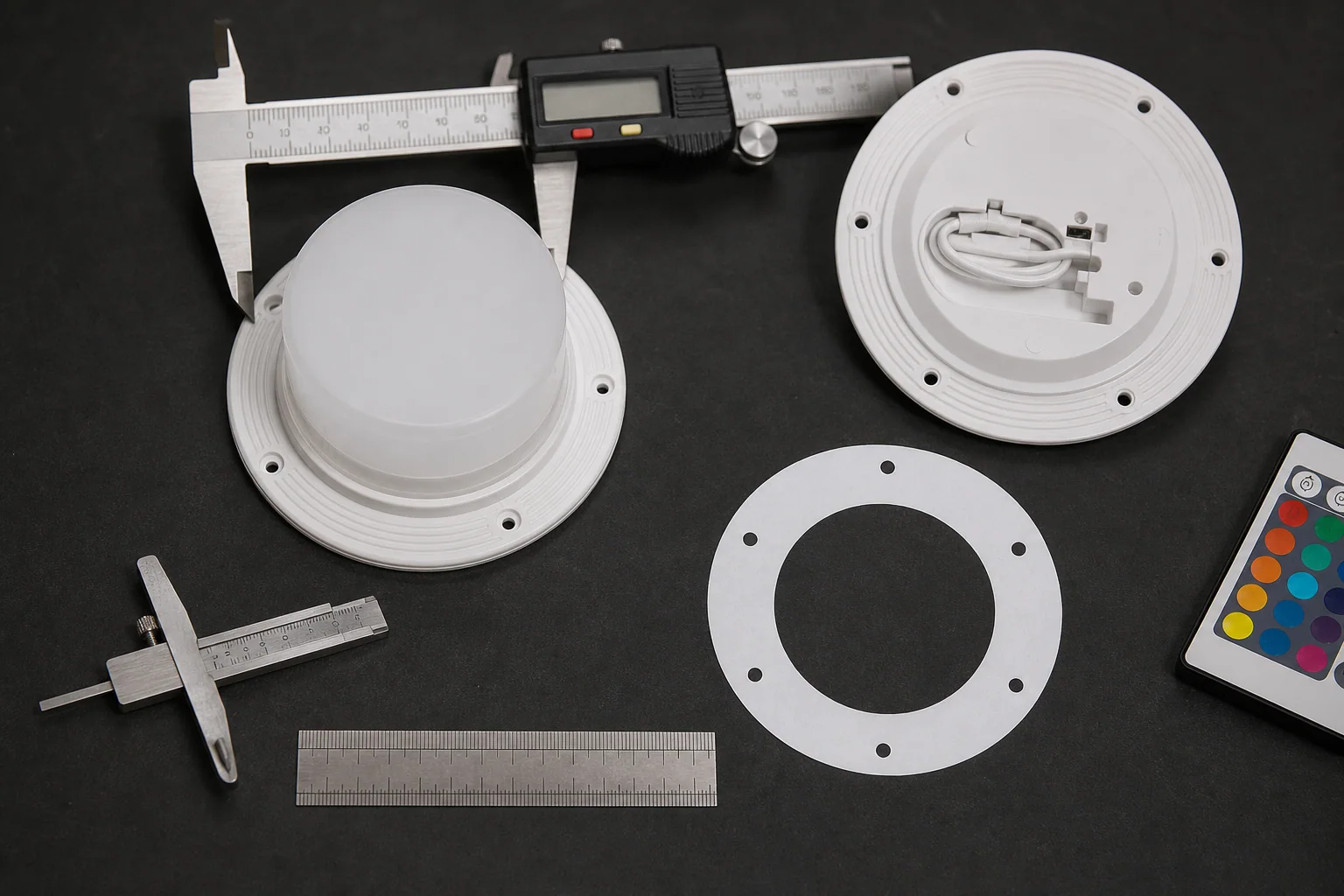

Measure before matching
Diameter alone is not enough.
A quick flange measurement can narrow the choice. If a closer check is needed, we will show you exactly which hole spacing, opening or internal clearance measurement to take.

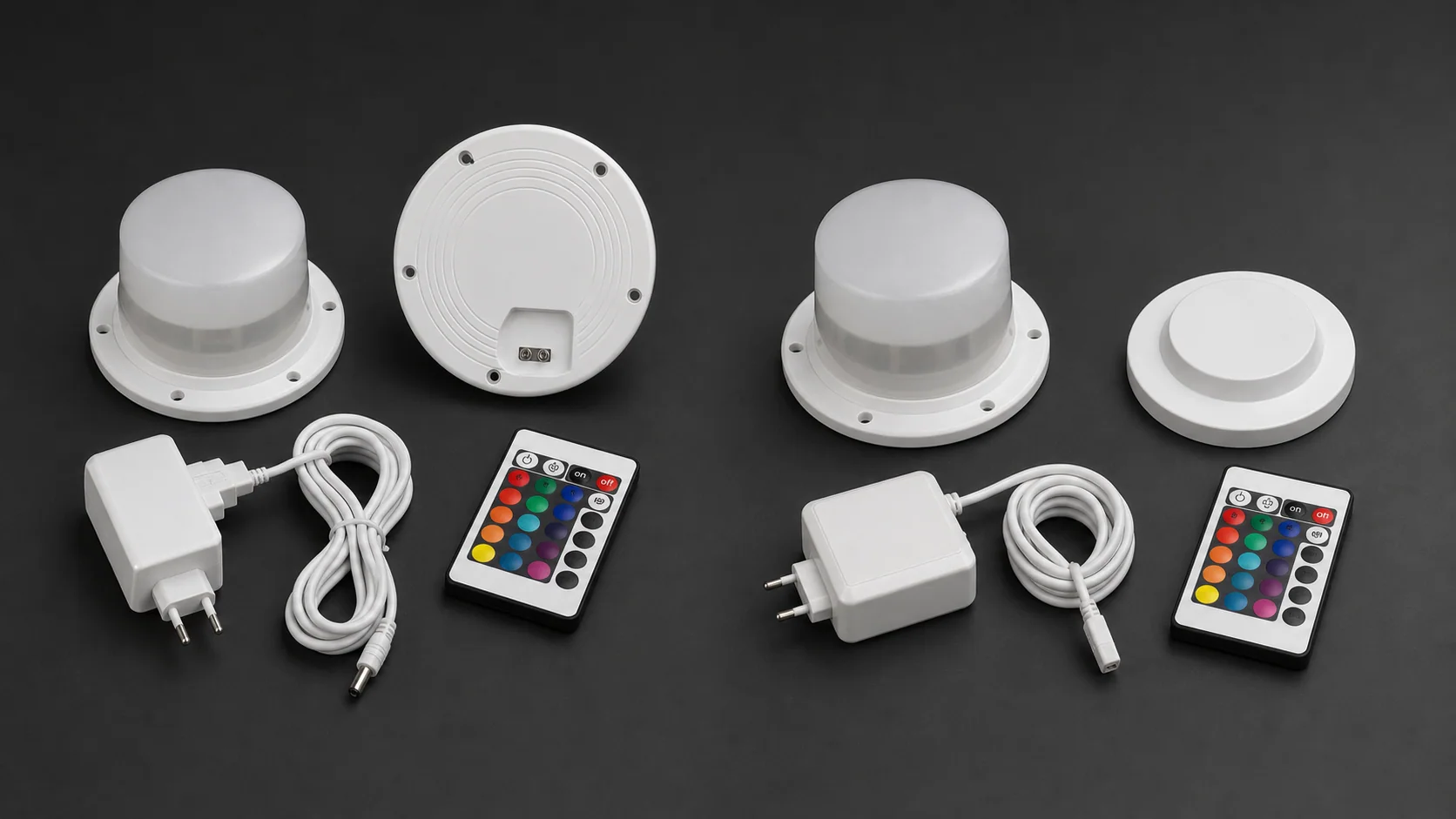

Charging system
Direct and induction charging are different platforms.
A photo of the charger or charging base is useful when available. We will confirm whether the original system can be reused or whether a matched module, charger and remote set is safer.
85 mm and 120 mm reference
Use the nominal size to narrow the search—not to confirm the fit.
Compare these direct-charge and induction-charge starting points. Follow the product links for specifications; the final choice depends on your existing installation.
| Nominal size | Direct-charge reference | Induction-charge reference | Confirm before replacement |
|---|---|---|---|
| 85 mm | VC-L85 | VC-LI85 | Flange, opening, hole pattern, depth, voltage, charger or base and remote |
| 120 mm | VC-LN120 | VC-LI120 | Flange, opening, hole pattern, depth, voltage, charger or base and remote |
| Other sizes | Compare the complete LED module range | Use the current drawing and complete compatibility information | |

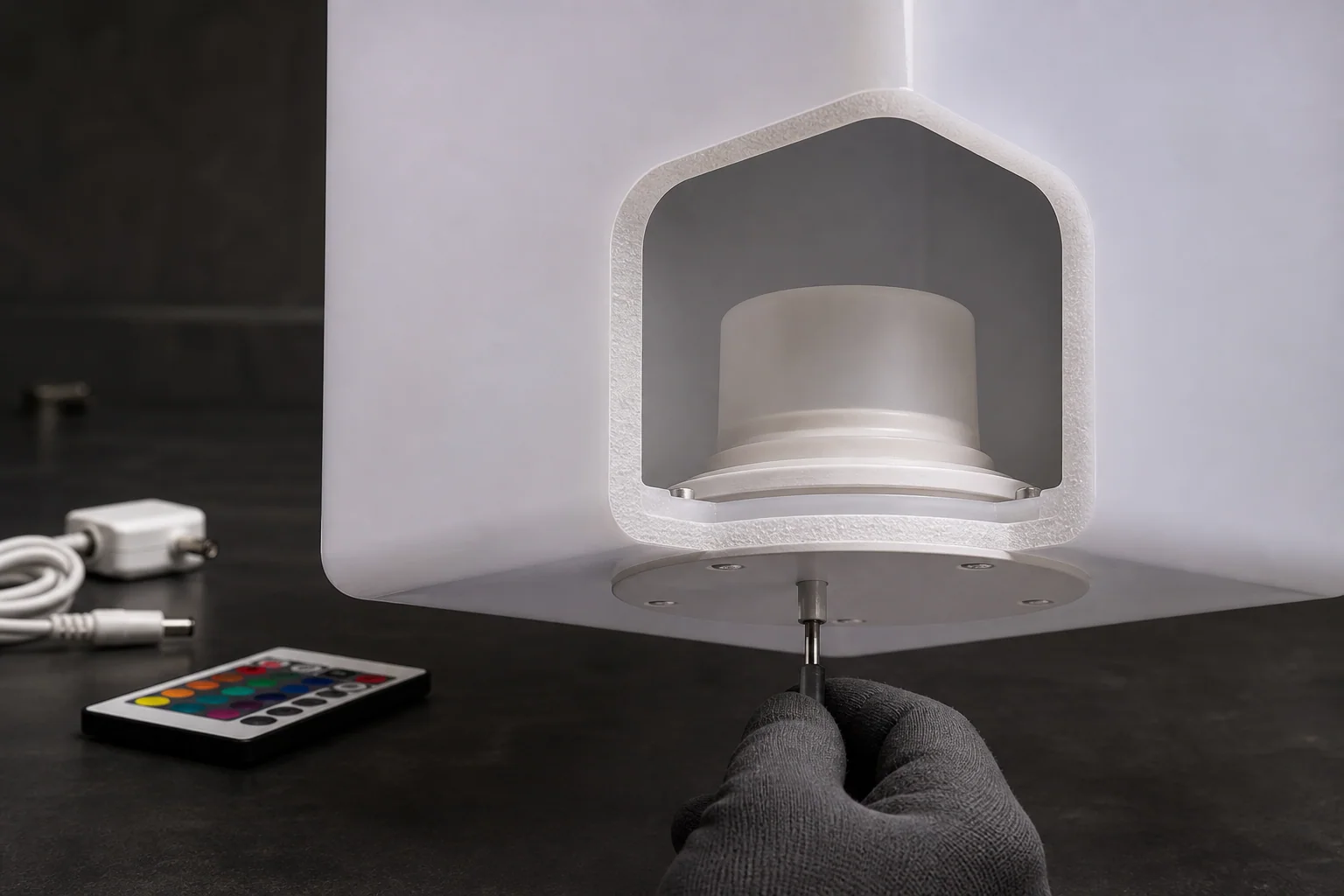

Correct integration
The light engine belongs inside the hollow furniture body.
The LED diffuser and light source face into the translucent shell so the furniture can distribute the light. The mounting flange and bottom access area must sit correctly against the service opening.
Installation and sealing should be completed by a competent technician. Final waterproof performance depends on the complete furniture assembly, not the module alone.

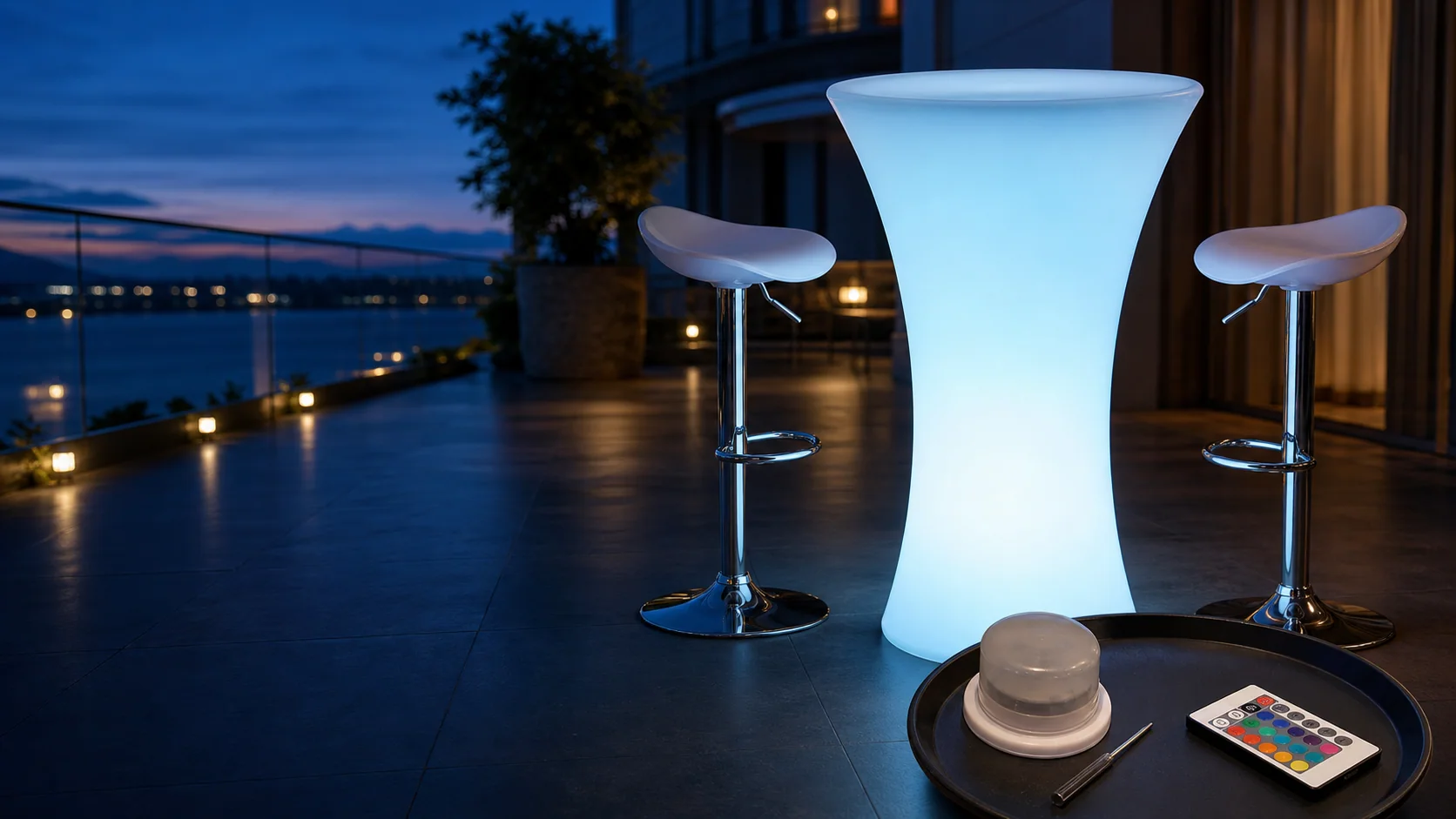

Extend product life
Restore the light without replacing the complete furniture piece.
In a related customer case, Vcan selected VC-LN120 for an existing PE stool after reviewing its opening, mounting pattern, available depth and charging requirement. See the customer photos and fit checks before choosing a replacement for your own furniture.
Find a replacementSee the real PE stool replacement case →Replacement overview

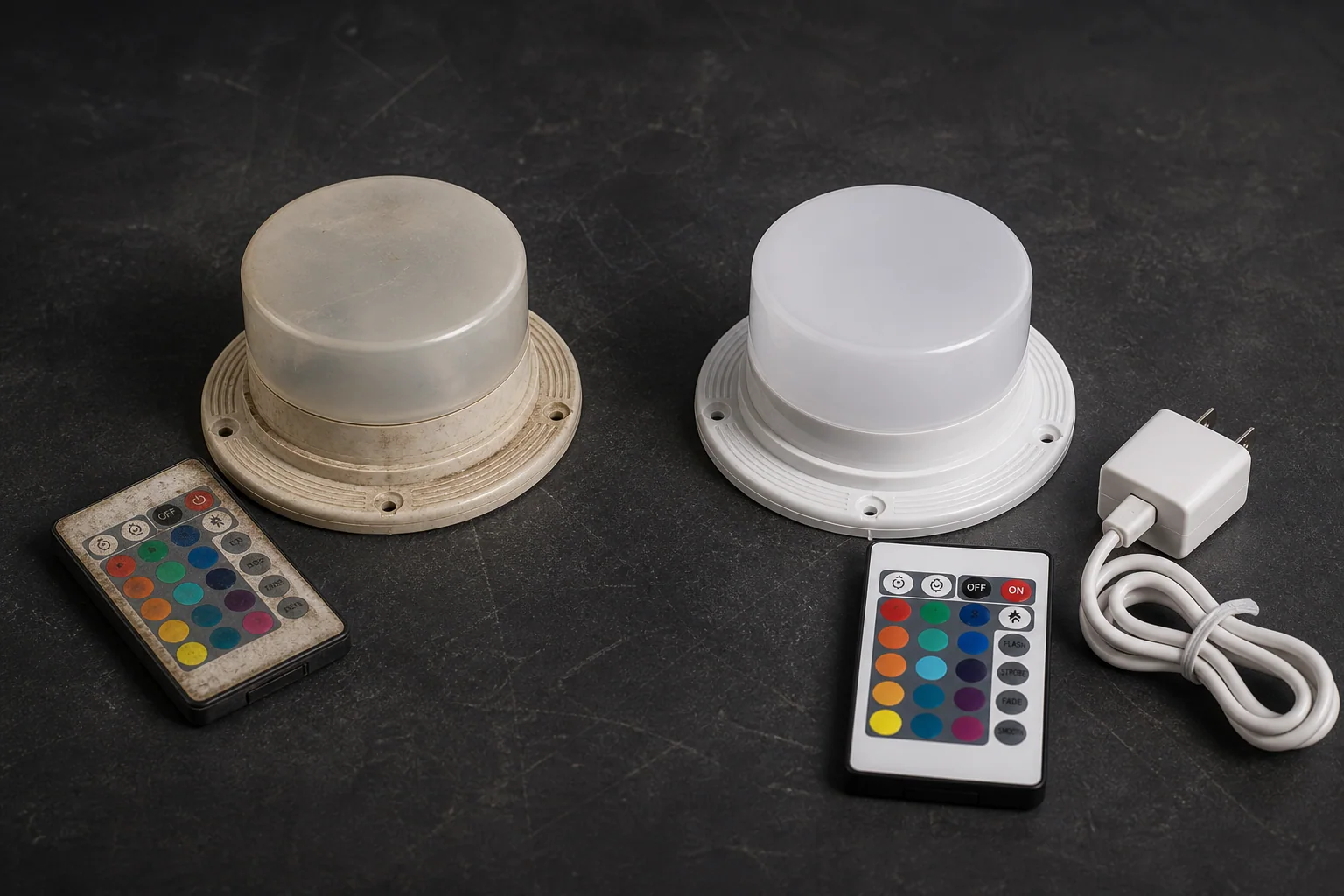

From the failed unit to a compatible replacement direction.
This visual guide shows the information needed for an initial compatibility review.
Compatibility request
Start with the approximate size and a short message.
You do not need to complete a technical checklist. Send what you already know and we will compare it with our 45, 60, 75, 85, 90, 117, 120, 175 and 200 mm platforms.
- Approximate outside diameter, such as 85 mm or 120 mm
- Required quantity
- Charging voltage if known
Frequently asked questions
Before selecting a replacement module.
Does LED furniture battery mean a battery pack or a complete light module?
Customers sometimes use LED furniture battery to mean the complete rechargeable light inside a table or chair. Tell us whether you need a battery component or the whole LED module, and confirm which accessories are included. A light that stops working does not by itself establish that its battery has failed.
Can one replacement module fit every brand of LED furniture?
No. Compatibility depends on diameter, mounting-hole position, installation depth, charging method, operating voltage and sealing structure. We review the original unit before recommending a replacement.
What if the original supplier is no longer available?
Start with the approximate outside diameter and required quantity. Add the charging voltage if known. Vcan can narrow the options first and ask for a photo or another measurement later only if it is needed.
Can the original remote control or charger be reused?
Sometimes, but compatibility must be confirmed. Remote frequency, control protocol, connector type, polarity and charger output can differ, so a matching accessory set may be required.
How do I tell whether an old LED module is 85 mm or 120 mm?
A quick measurement across the complete outside flange usually narrows the choice. If you are unsure, send a photo with a ruler beside the module. Vcan can then identify which additional measurement, if any, is needed.
Can a direct-charge LED module replace an induction-charge module?
Not as a simple one-for-one change. The module, charger or induction base, opening, mounting pattern, installation depth, voltage and controls must be reviewed as one system. A matched replacement set may be required.
Are IR and RF remote controls interchangeable?
Usually not. IR and RF use different communication methods, and even two remotes of the same type may use different frequencies or protocols. Confirm the module receiver and remote together.
Can I use a replacement with a different voltage, charger or IP rating?
Do not connect an unverified charger or different voltage. Charger output, connector, polarity, battery charging circuit and control system must match. A higher module IP rating also does not guarantee the waterproof performance of the completed furniture installation.
Which photos help confirm replacement compatibility?
Photos are a follow-up step, not required to begin. When confirmation is needed, Vcan may ask for the old module and opening, underside, charger label or remote control.
Will the replacement keep the same waterproof performance?
The module rating is only one part of the system. Final waterproof performance also depends on the furniture opening, gasket, screw pressure, orientation and correct sealing during installation.
Should I order only the LED unit or a complete LED light kit?
When the original charger, induction base or remote-control protocol is uncertain, a matched waterproof RGB LED kit is usually the safer option. Confirm exactly which module and accessories are included before ordering because similar-looking parts may not be compatible.
Optional detailed guide
Want to check more details yourself?
Use the illustrated guide for fault checks, measurements and installation steps, or read about planning spare modules for event rental furniture.
For other real replacement enquiries, see the illuminated sofa replacement case and the illuminated swing light-kit case. Their fit checks do not establish compatibility with every sofa or swing.
Keeping an existing illuminated sphere? Read the three-kit VC-LI120 glow-ball replacement order and the details to check before ordering for your own ball.
For specific compatibility questions, compare charging systems, control options and IP65 versus IP68 protection before confirming a match.
Want to retain your old remote? See the existing-remote compatibility review.
Download the printable measurement checklist (PDF)
