VC-LI85
85 mm Waterproof Induction-Charge LED Module

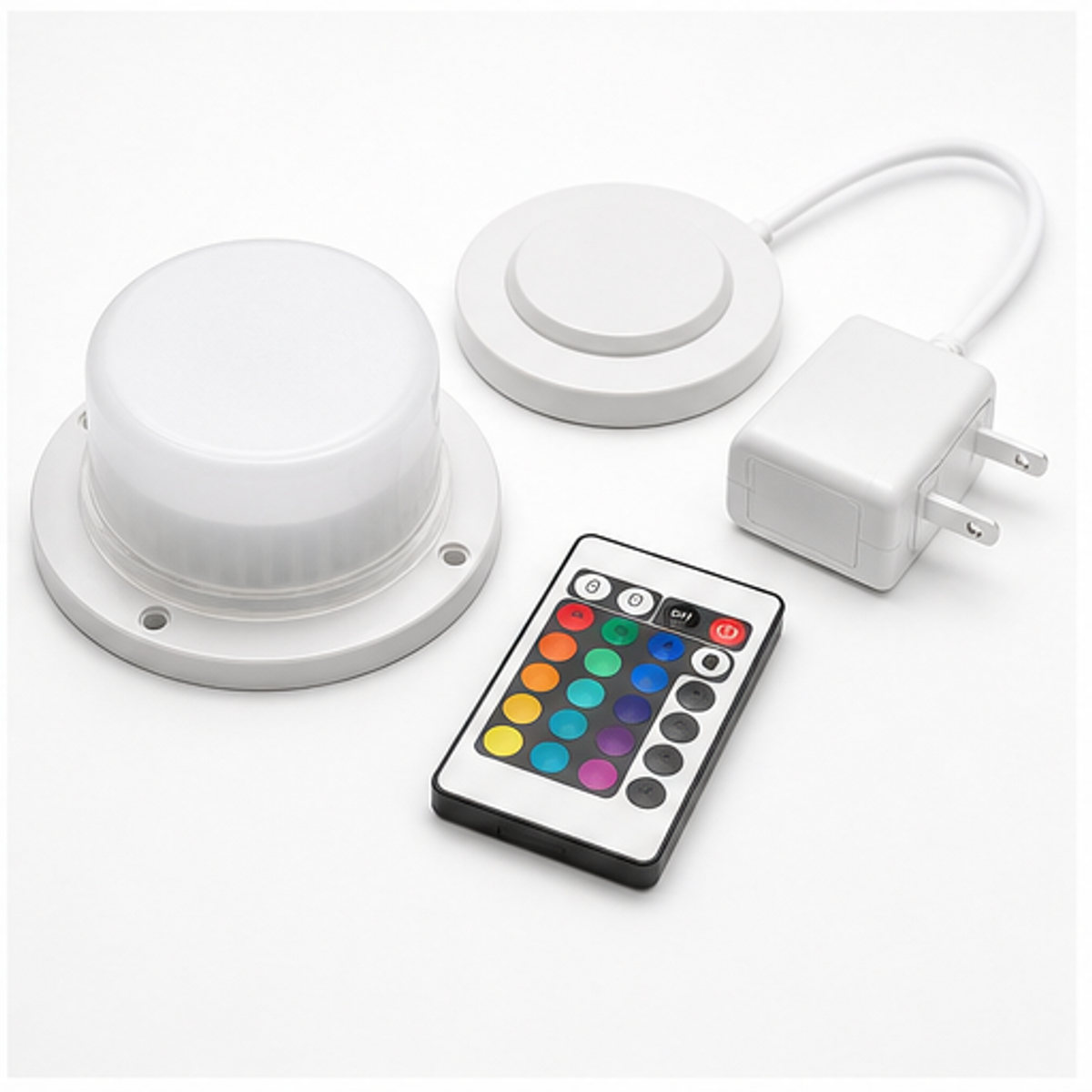

VC-LI85 is a sealed induction-charging LED module for compact products requiring improved protection against water exposure. It can form part of a complete waterproof LED kit with a matched charging base and remote control, subject to compatibility review.
Common applications: 85 mm waterproof RGB LED kit for illuminated furniture; 85 mm cordless LED lamp for glowing bars and tables; 85 mm OEM LED kit for translucent PE products; 85 mm induction-charging LED insert for custom products.
- Diameter
- Ø 85 mm
- Battery
- 1,500 mAh
- Voltage
- 5 V
- Power
- 2.8 W
- LED configuration
- 6 RGB + 6 white LEDs
- Colour control
- Remote control / button, 16 colours
- Dynamic modes
- Flash, strobe, fade, smooth
- Typical operation
- Approx. 4–6 h charge, 8–12 h runtime*
*Runtime varies with brightness, mode, battery configuration and operating conditions. Waterproof performance requires correct product integration and sealing.
Replacing a light in existing furniture? Check compatibility before choosing a module →

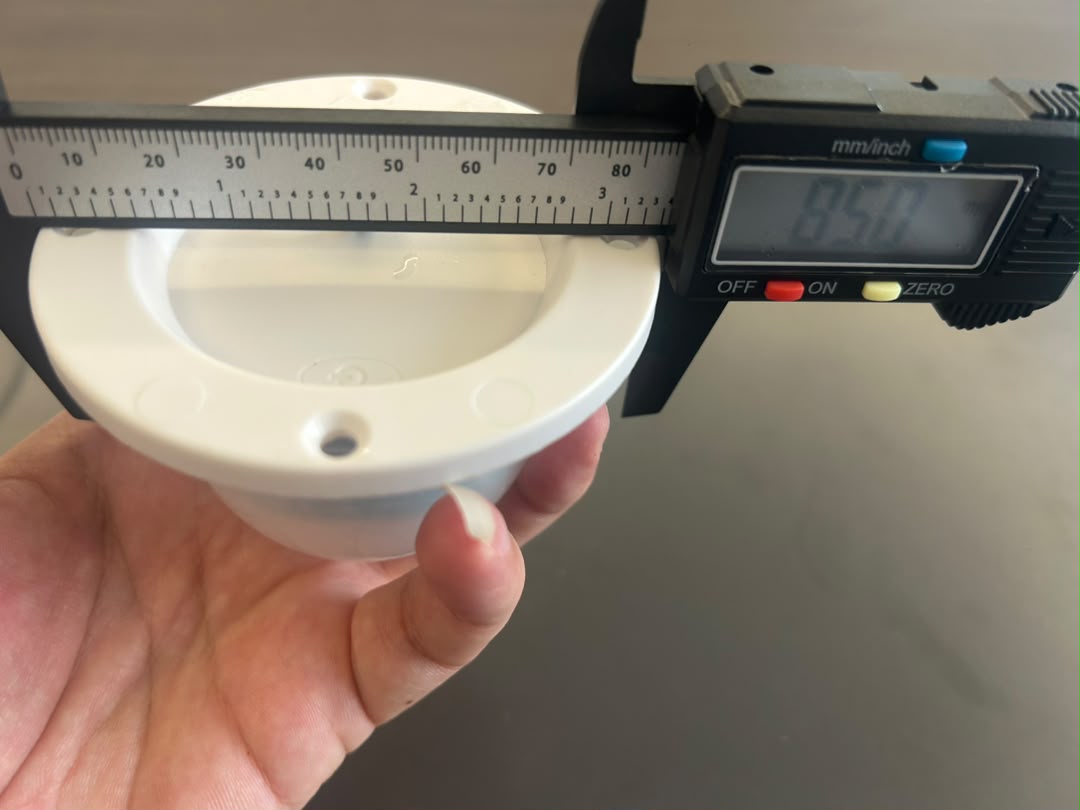

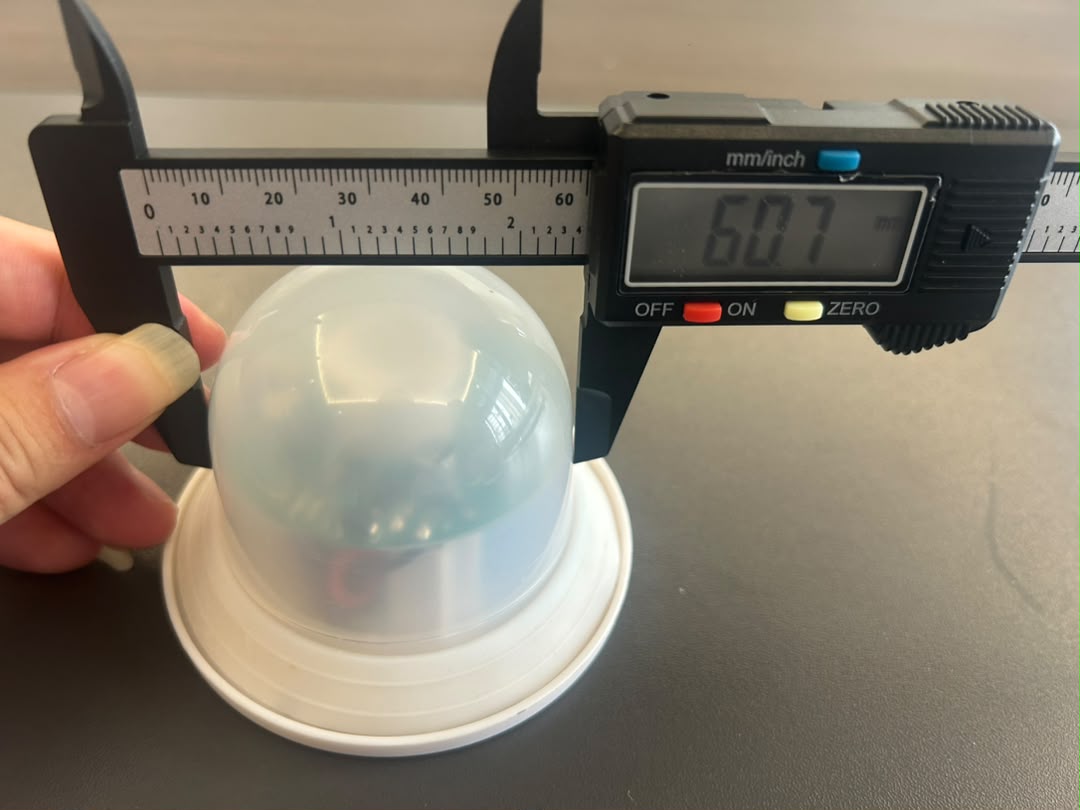

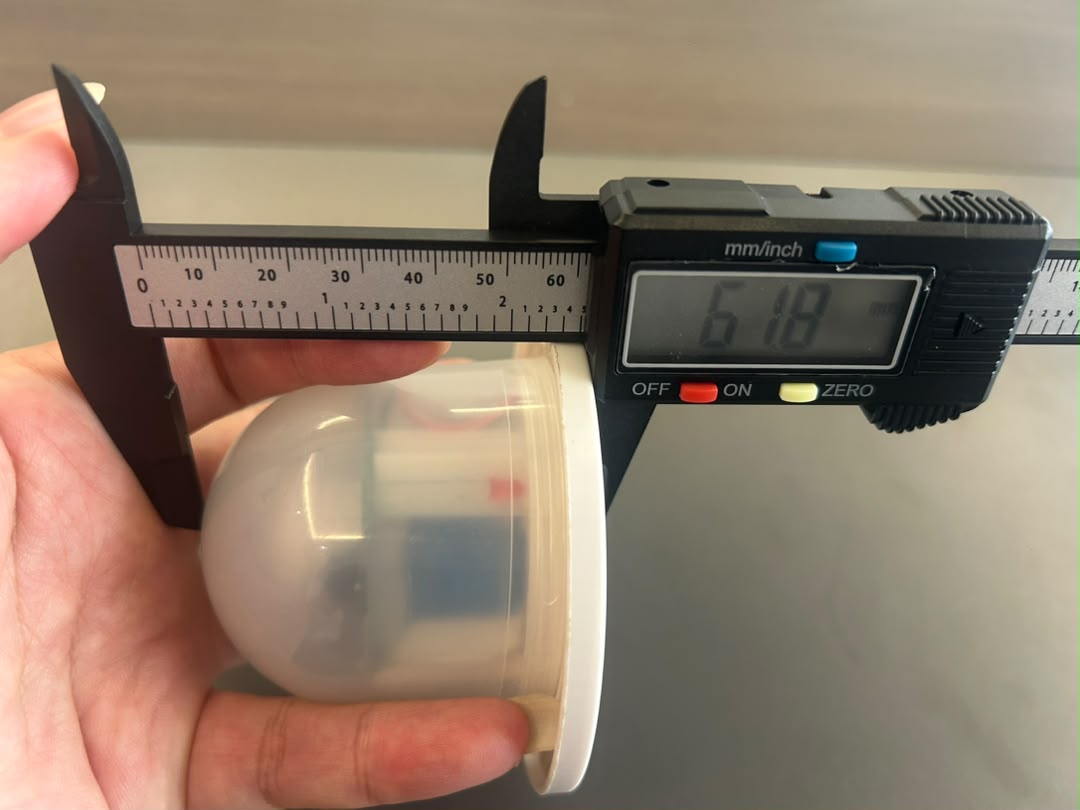

Installation reference · real measurement photos
Measured dimensions of a VC-LI85 round-cover sample.
Check the complete shape, not only the nominal module diameter. These photographs record one sample, not guaranteed dimensions for every configuration.
Sample reference—not a tooling drawing. Cover width is not the required housing opening. Confirm mounting-hole positions, clearance, tolerances and charging access for the selected configuration against the approved sample and drawing before tooling. Photos can be opened for a closer look.
Product video
See VC-LI85 in operation.
Real product footage selected from the matching module and application video library.
Integration
Made to become part of your product.
The module installs inside translucent PE shells, acrylic forms and purpose-built enclosures. We can review mounting position, light diffusion, control access, charging access and battery capacity against your product design.
- PE rotational-moulded furniture and décor
- Acrylic and translucent product housings
- Event, hospitality and outdoor applications
- OEM LED layout, battery and control options
Replacing a failed light in existing illuminated furniture? Compatibility depends on the original opening, mounting points, installation depth, charging method and electrical requirements.
Check replacement compatibility →Need CE, EMC, LVD, RoHS, waterproof, battery or adapter records for your selected configuration? Review the available LED module quality and compliance documents →
Read the 85 mm and 120 mm induction-kit repeat-order case →
Read the VC-LI85 and VC-LI120 children's lamp sample-selection case →
Built around your product
