VC-L85
85 mm Direct-Charge RGB LED Unit
VC-L85 is a small-format rechargeable LED unit for compact PE furniture, decorative objects and portable illuminated products. Customers can choose a USB-C or DC charging interface for new production and compatible replacement work where an 85 mm installation size is suitable.
Common applications: 85 mm rechargeable LED unit for small PE furniture and decor; compact RGBW LED module for portable lamps and planters; replacement LED light for compatible event-rental products; OEM LED kit for acrylic displays and translucent housings.
- Diameter
- Ø 85 mm

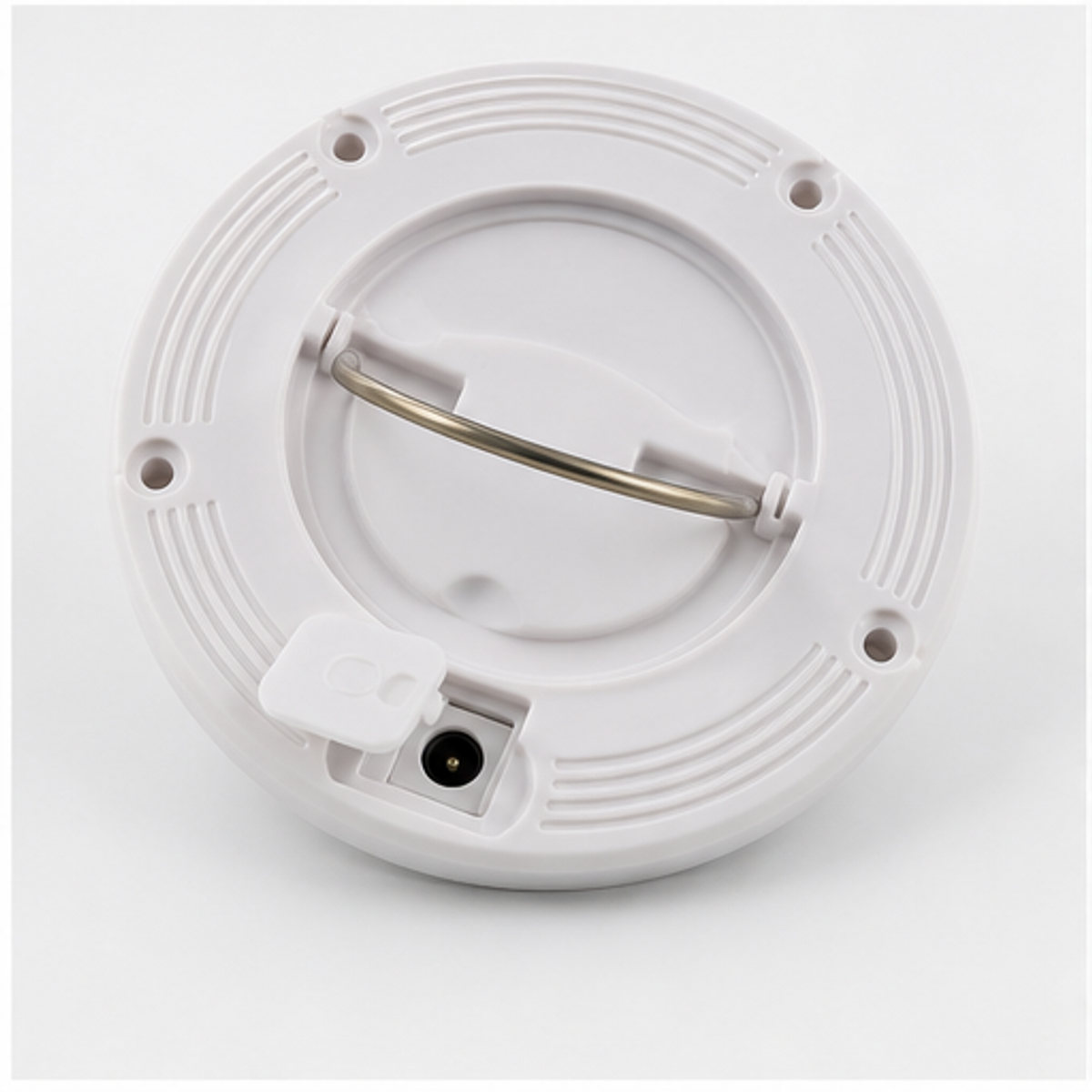

- Charging interface
- USB-C or DC (choose one)
- Battery
- 1,500 mAh
- Voltage
- 5 V
- Power
- 2.8 W

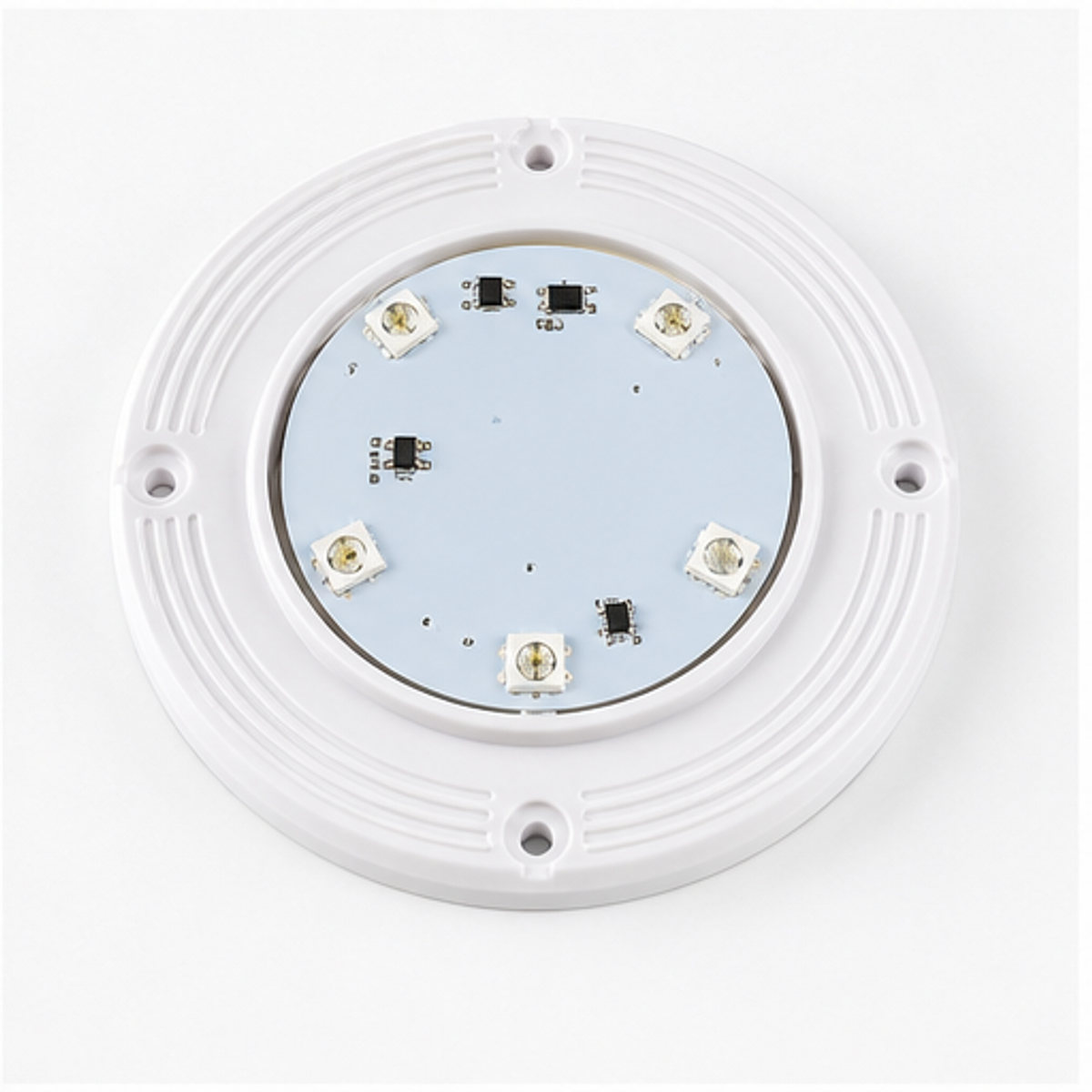

- LED configuration
- 6 RGBW LEDs
- Colour control
- Remote control / button, 16 colours
- Dynamic modes
- Flash, strobe, fade, smooth
- Typical operation
- Approx. 4–6 h charge, 8–12 h runtime*
Configuration: The specifications shown are the standard reference configuration. LED layout, battery capacity and related electrical details can be adjusted for suitable OEM projects.
*Runtime varies with brightness, mode, battery configuration and operating conditions. Waterproof performance requires correct product integration and sealing.
Replacing a light in existing furniture? Check compatibility before choosing a module →
Installation reference · real measurement photos

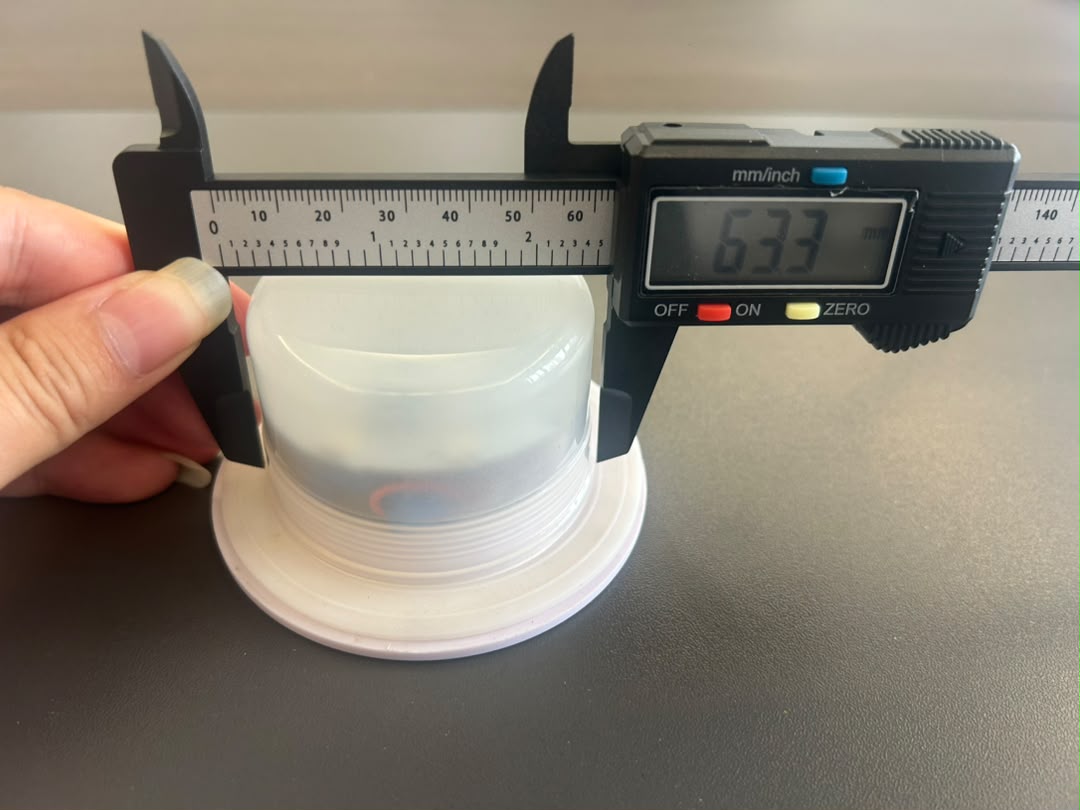

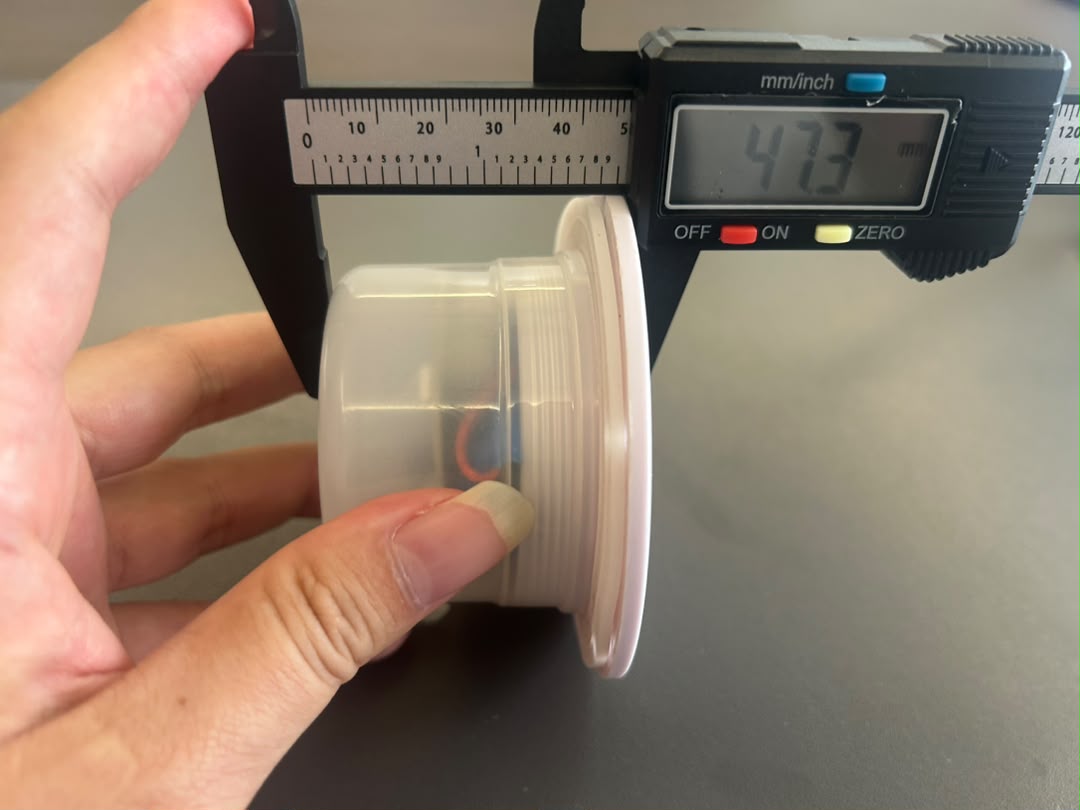

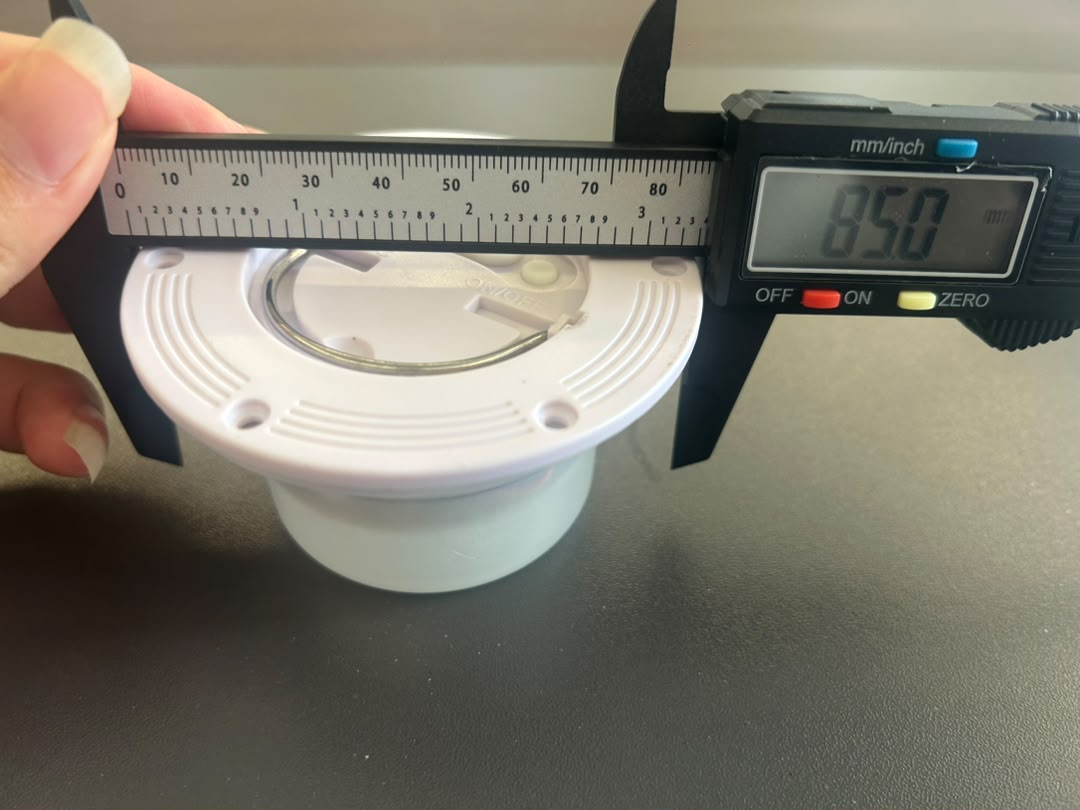

Measured dimensions of a VC-L85 flat-cover sample.
Check the complete shape, not only the nominal module diameter. These photographs record one sample, not guaranteed dimensions for every configuration.
Sample reference—not a tooling drawing. Cover width is not the required housing opening. Confirm mounting-hole positions, clearance, tolerances and charging access for the selected configuration against the approved sample and drawing before tooling. Photos can be opened for a closer look.
Product video
See VC-L85 in operation.
Real product footage selected from the matching module and application video library.
Integration
Made to become part of your product.
The module installs inside translucent PE shells, acrylic forms and purpose-built enclosures. We can review mounting position, light diffusion, control access, charging access and battery capacity against your product design.
- PE rotational-moulded furniture and décor
- Acrylic and translucent product housings
- Event, hospitality and outdoor applications
- OEM LED layout, battery and control options
Replacing a failed light in existing illuminated furniture? Compatibility depends on the original opening, mounting points, installation depth, charging method and electrical requirements.
Check replacement compatibility →Need CE, EMC, LVD, RoHS, waterproof, battery or adapter records for your selected configuration? Review the available LED module quality and compliance documents →
Built around your product
