VC-LI120
120 mm IP68 Induction-Charging LED Module
VC-LI120 provides sealed wireless charging for outdoor furniture, poolside products and hospitality installations. The module is produced against confirmed orders and should be matched with the correct induction base, opening size, mounting arrangement and product sealing.
Common applications: 120 mm waterproof RGB LED kit for illuminated furniture; 120 mm cordless LED lamp for glowing bars and tables; 120 mm OEM LED kit for translucent PE products; 120 mm induction-charging LED insert for custom products.
- Diameter
- Ø 120 mm
- Battery
- 2,000 mAh
- Voltage
- 5 V
- Power
- 3.8 W
- LED configuration
- 18 RGB + 18 white LEDs
- Colour control
- Remote control / button, 16 colours
- Dynamic modes
- Flash, strobe, fade, smooth
- Typical operation
- Approx. 4–6 h charge, 8–12 h runtime*
*Runtime varies with brightness, mode, battery configuration and operating conditions. Waterproof performance requires correct product integration and sealing.
Replacing a light in existing furniture? Check compatibility before choosing a module →
Installation reference · real measurement photos

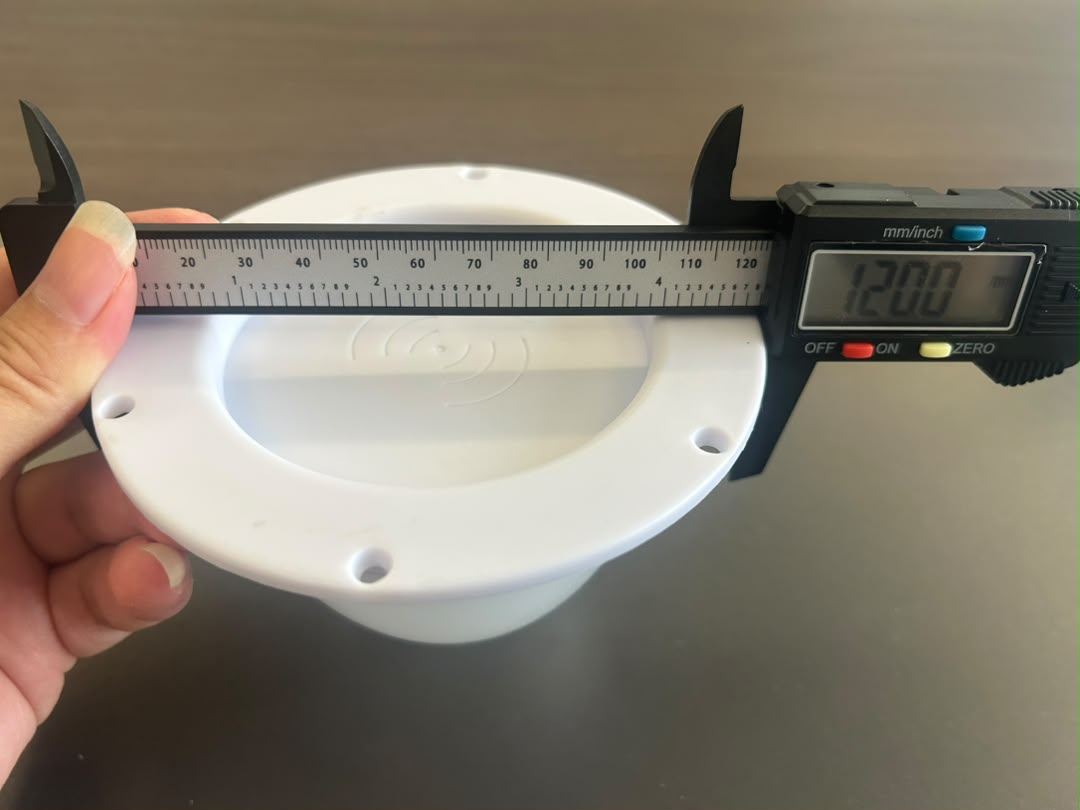

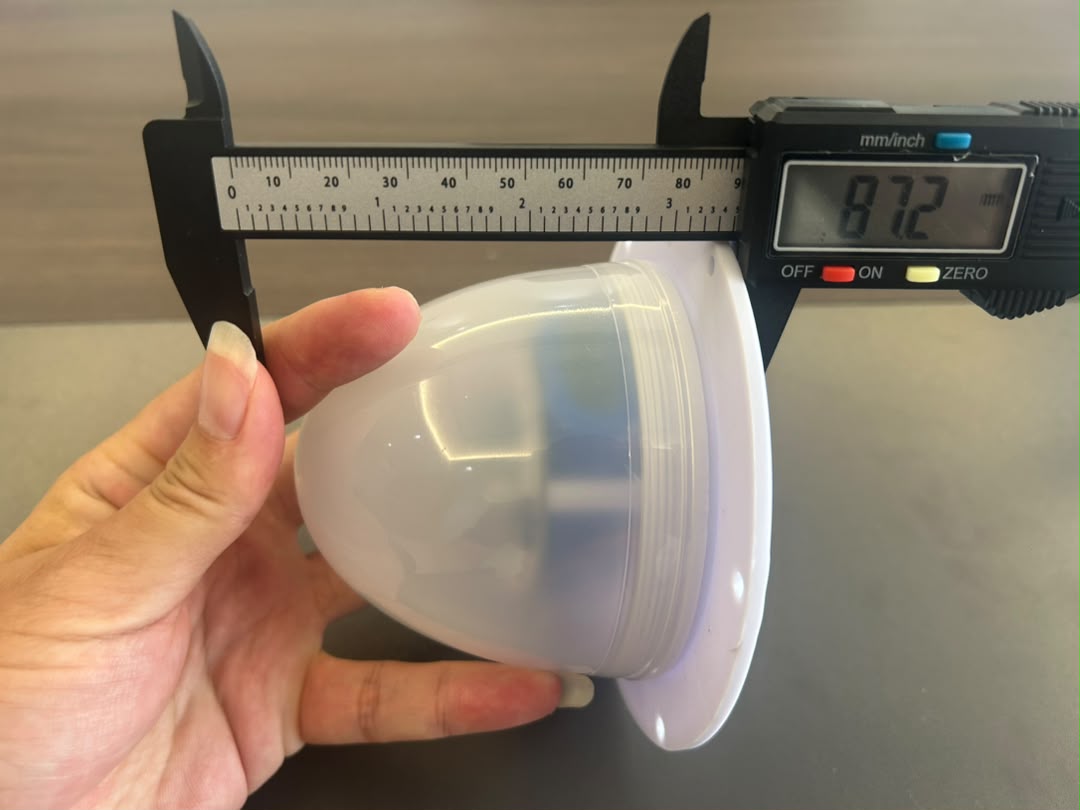

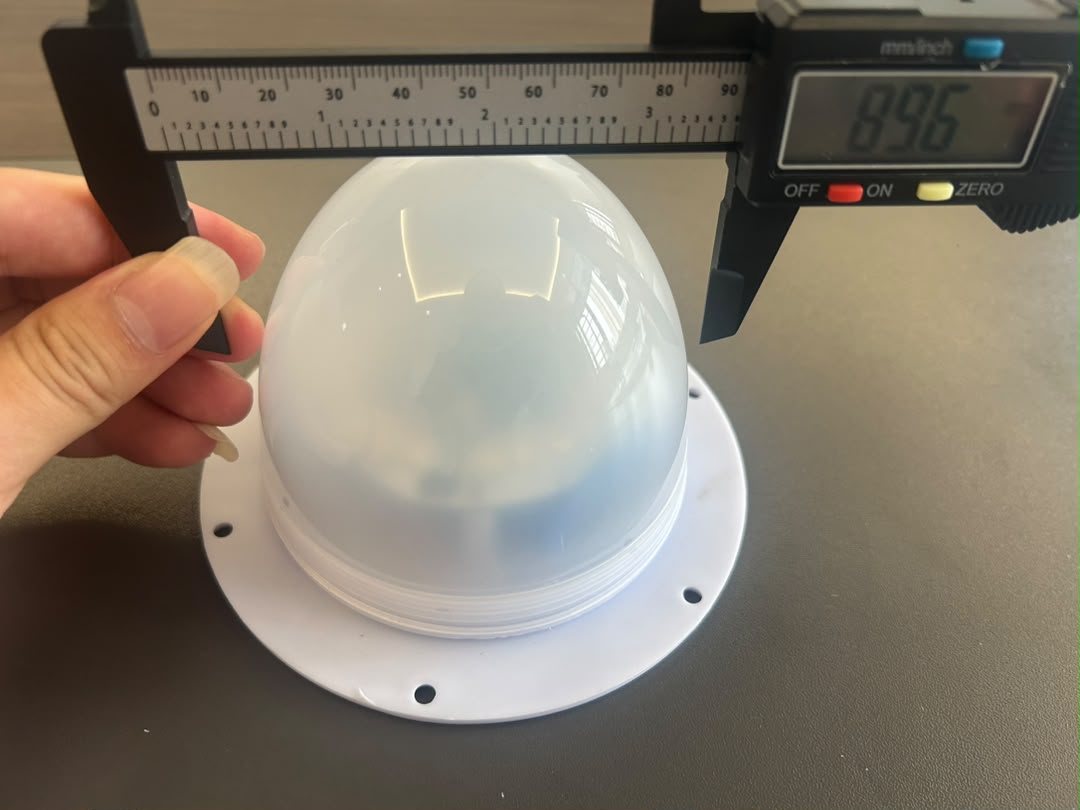

Measured dimensions of a VC-LI120 round-cover sample.
Check the complete shape, not only the nominal module diameter. These photographs record one sample, not guaranteed dimensions for every configuration.
Sample reference—not a tooling drawing. Cover width is not the required housing opening. Confirm mounting-hole positions, clearance, tolerances and charging access for the selected configuration against the approved sample and drawing before tooling. Photos can be opened for a closer look.
Product video
See VC-LI120 in operation.
Real product footage selected from the matching module and application video library.
Integration
Made to become part of your product.
The module installs inside translucent PE shells, acrylic forms and purpose-built enclosures. We can review mounting position, light diffusion, control access, charging access and battery capacity against your product design.
- PE rotational-moulded furniture and décor
- Acrylic and translucent product housings
- Event, hospitality and outdoor applications
- OEM LED layout, battery and control options
Replacing a failed light in existing illuminated furniture? Compatibility depends on the original opening, mounting points, installation depth, charging method and electrical requirements.
Check replacement compatibility →Need CE, EMC, LVD, RoHS, waterproof, battery or adapter records for your selected configuration? Review the available LED module quality and compliance documents →
Read the solar-and-induction mixed 30-unit order case →
Read the three-kit glow-ball replacement order and fit checks →
Read the 85 mm and 120 mm induction-kit repeat-order case →
Read the VC-LI85 and VC-LI120 children's lamp sample-selection case →
