VC-AP120
120 mm Bluetooth App-Controlled RGBW LED Module

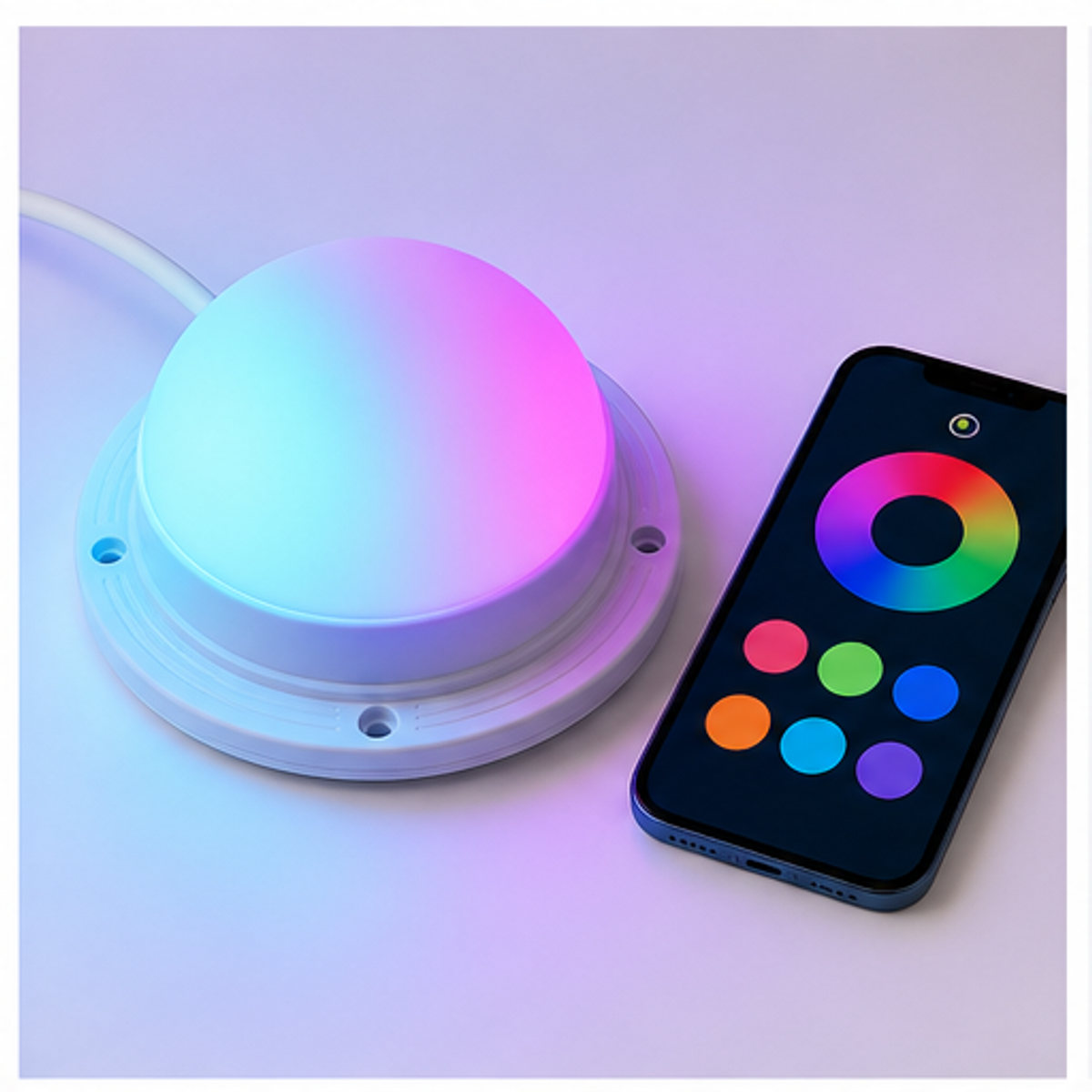

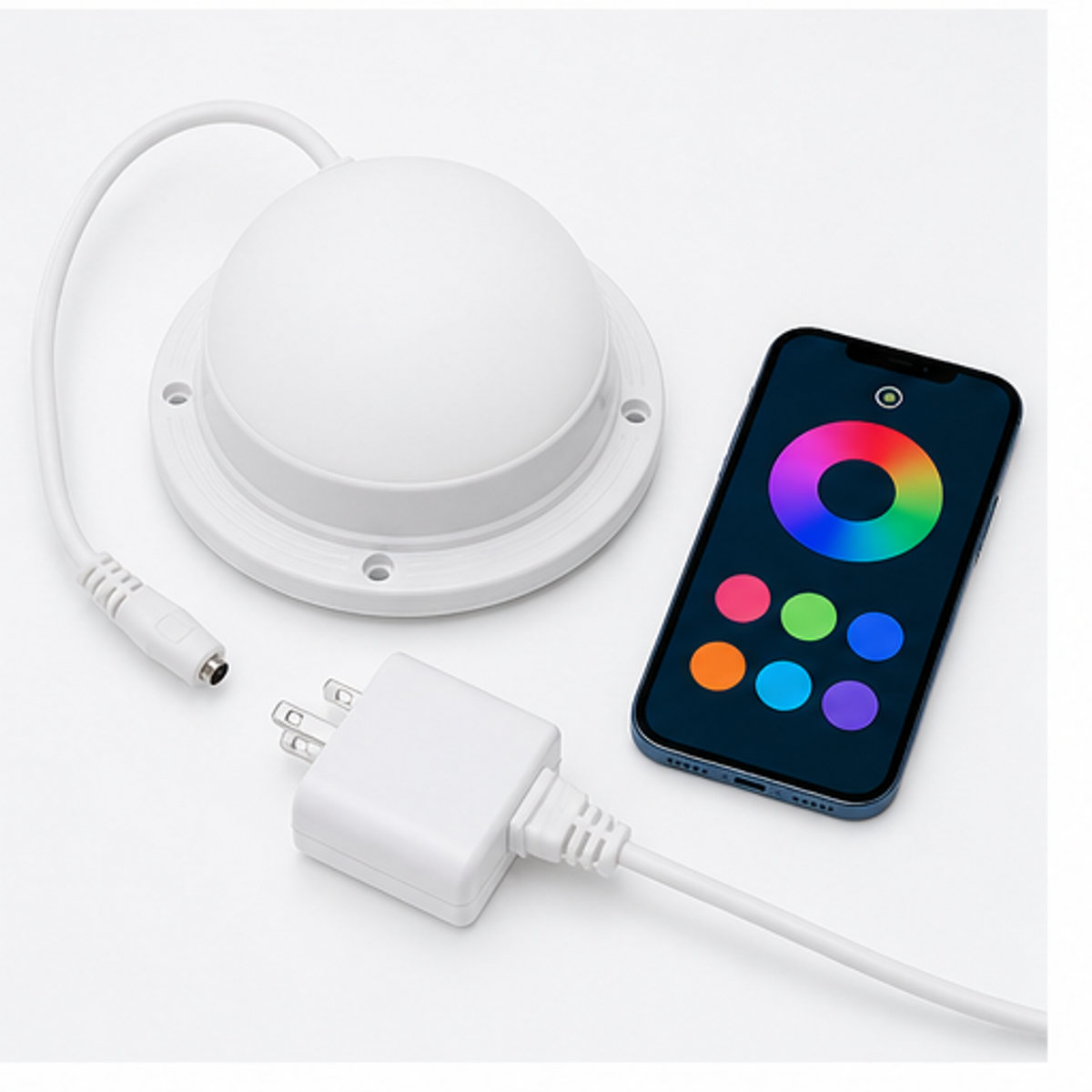

VC-AP120 is a rechargeable RGBW LED module controlled by Bluetooth, normally through the Tuya app. It retains a physical button and supports on/off, dimming and timer functions. A handheld remote is not included as standard, but remote control can be customized when required.

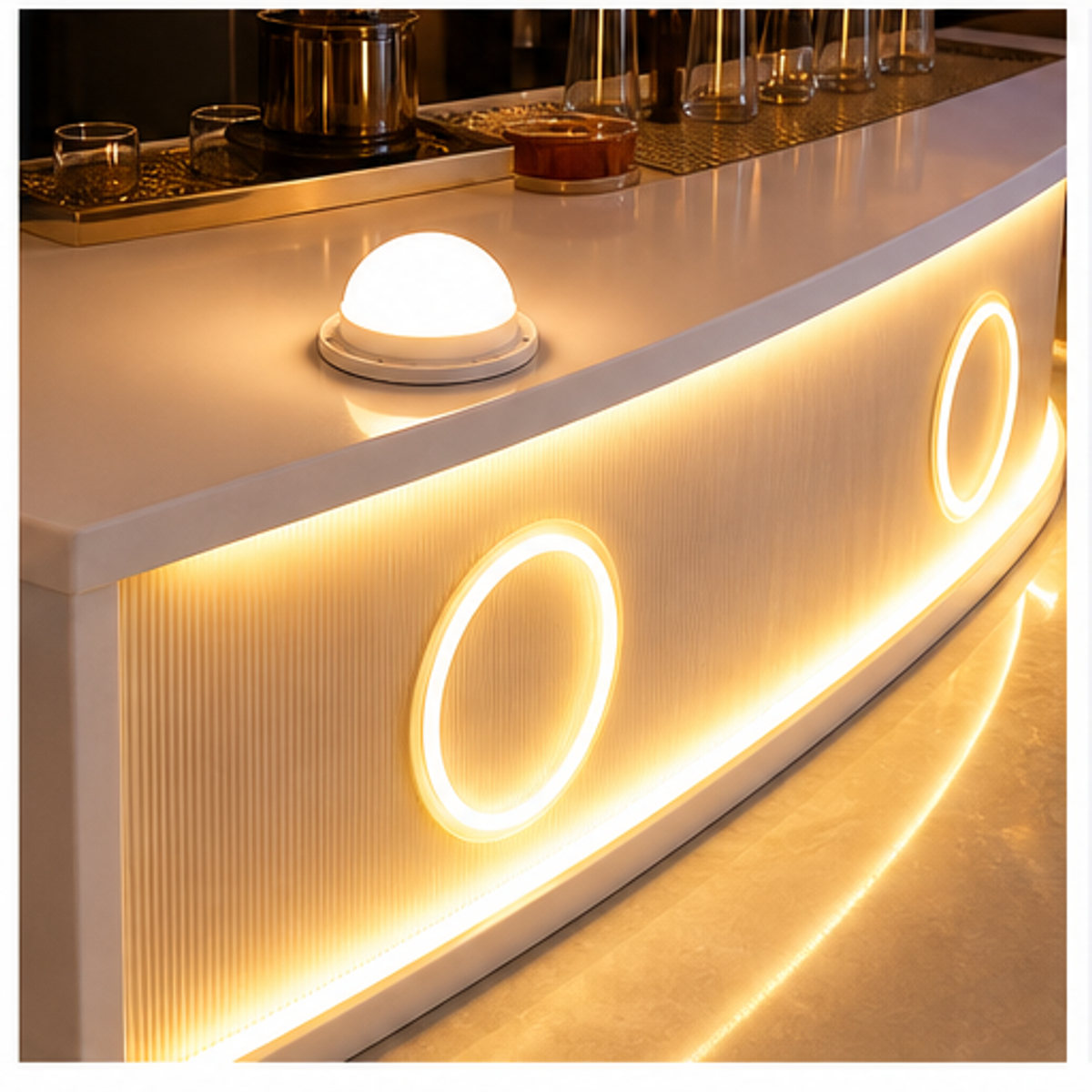

Common applications: Bluetooth RGBW LED module for smart illuminated furniture; Tuya app-controlled light unit for tables, bars and custom PE products; OEM smart lighting module with physical button, dimming and timer control.
- Diameter
- Ø 120 mm
- Battery
- 4,400 mAh
- Voltage
- 5 V
- Power
- 5.8 W
- LED configuration

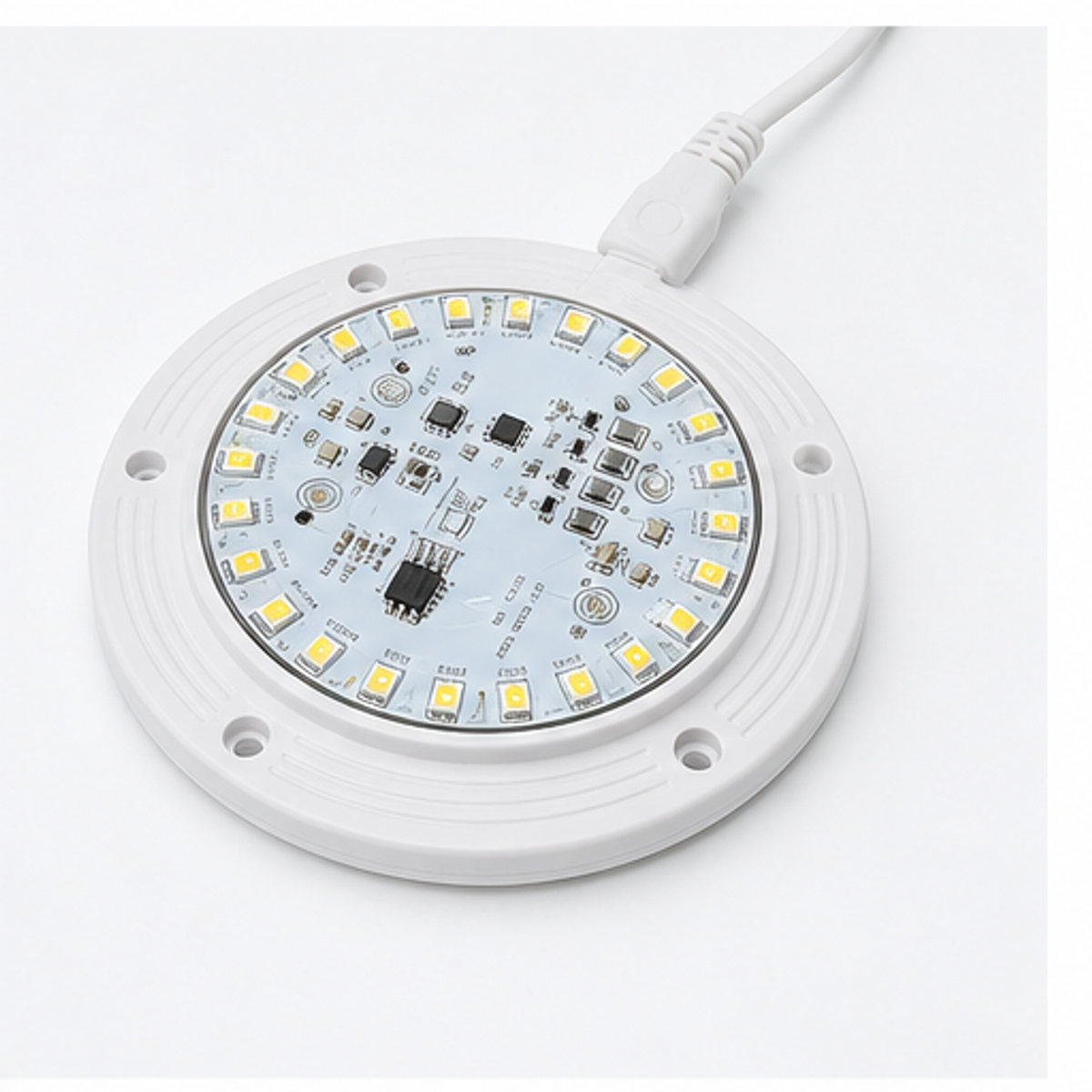

- 24 RGB + 24 white LEDs
- Control
- Bluetooth app (normally Tuya) / physical button
- Functions
- On/off, dimming and timer
- Handheld remote
- Not included as standard; customization available
- Typical operation
- Approx. 4–6 h charge, 8–12 h runtime*
Configuration: The standard version uses Bluetooth control, normally through the Tuya app, and retains a physical button. A handheld remote is not included as standard but can be customized for suitable orders.
*Runtime varies with brightness, mode, battery configuration and operating conditions. Waterproof performance requires correct product integration and sealing.
Replacing a light in existing furniture? Check compatibility before choosing a module →
Product video
See VC-AP120 in operation.
Real product footage selected from the matching module and application video library.
Integration
Made to become part of your product.

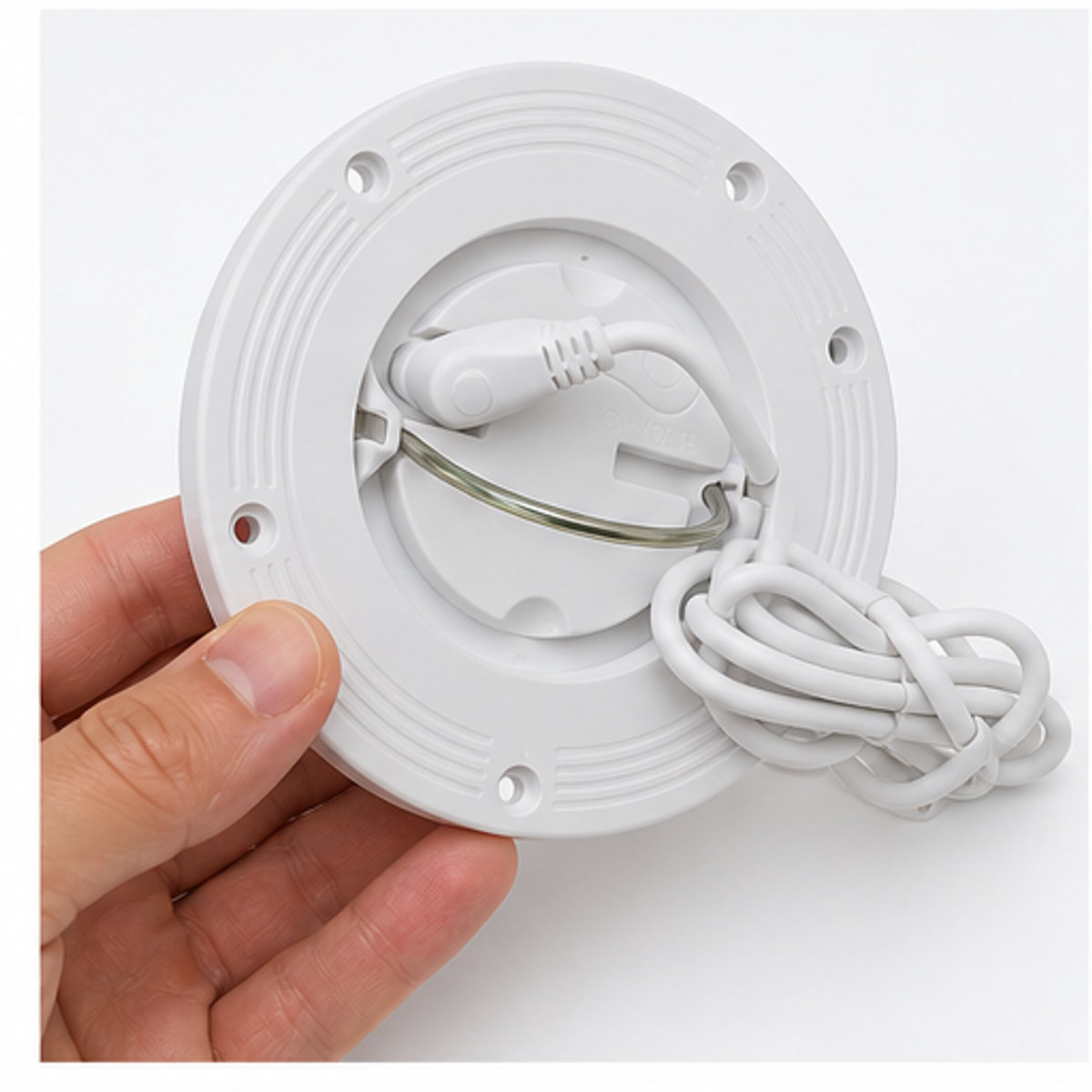

The module installs inside translucent PE shells, acrylic forms and purpose-built enclosures. We can review mounting position, light diffusion, control access, charging access and battery capacity against your product design.
- PE rotational-moulded furniture and décor
- Acrylic and translucent product housings
- Event, hospitality and outdoor applications
- OEM LED layout, battery and control options
Replacing a failed light in existing illuminated furniture? Compatibility depends on the original opening, mounting points, installation depth, charging method and electrical requirements.
Check replacement compatibility →Need CE, EMC, LVD, RoHS, waterproof, battery or adapter records for your selected configuration? Review the available LED module quality and compliance documents →
