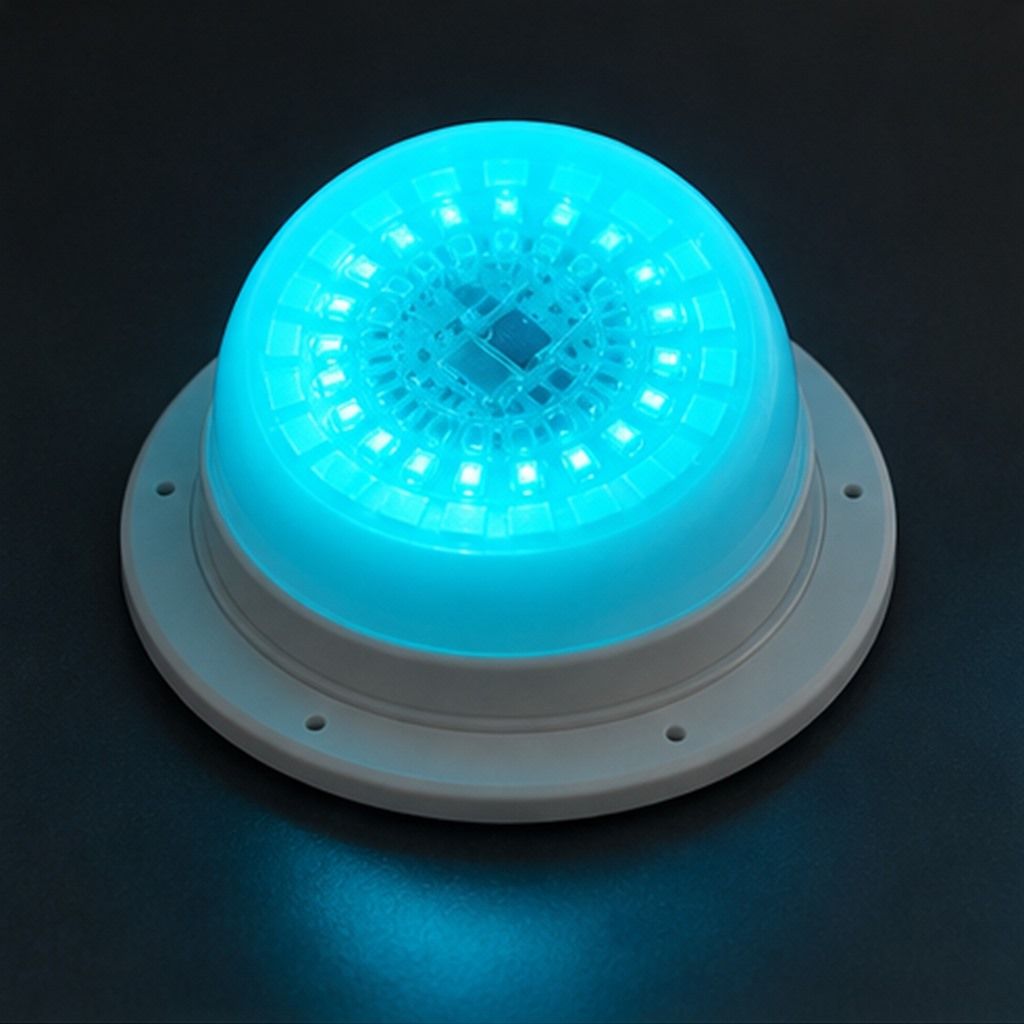

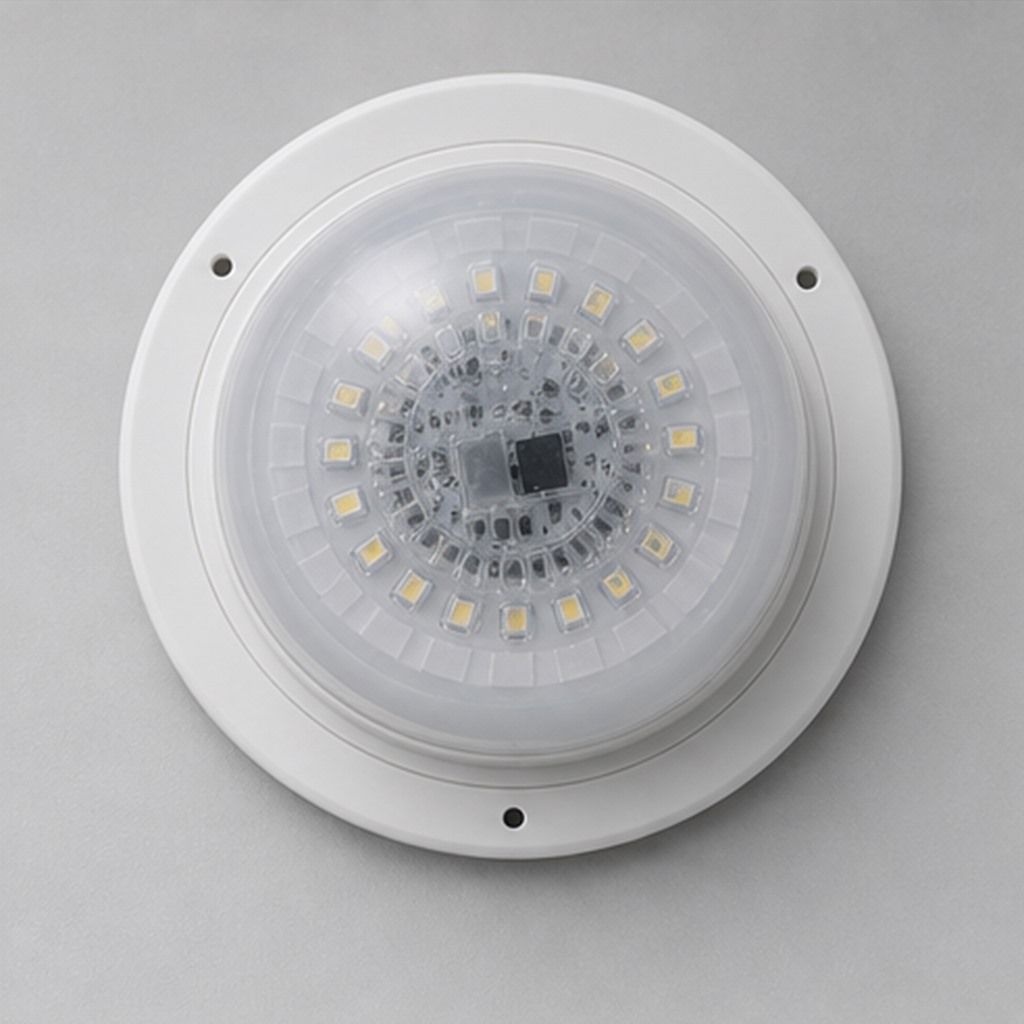

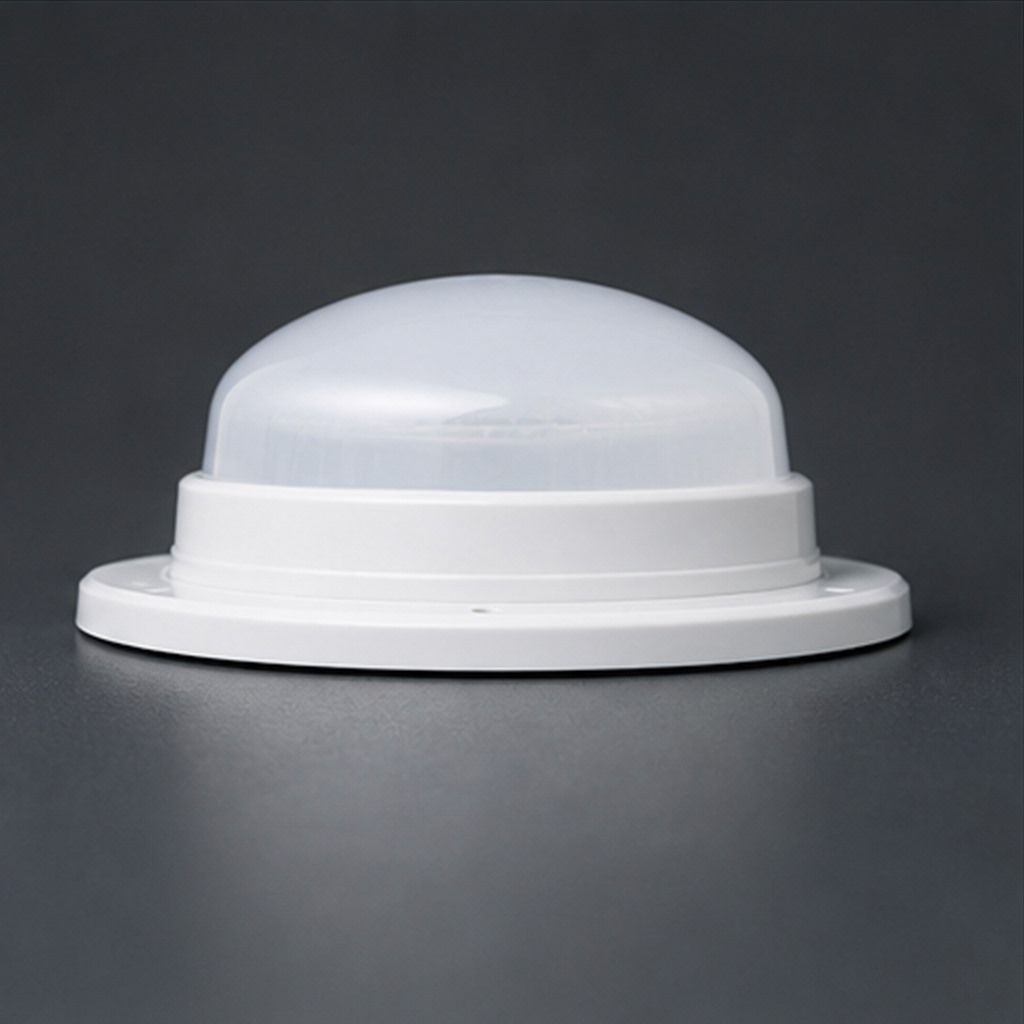

VC-LI117
117 mm Induction-Charge Module
A high-capacity sealed module for illuminated furniture, event products and outdoor applications.
- Diameter
- Ø 117 mm
- Battery
- 4,500 mAh
- Voltage
- 7.5 V
- Power
- 4.2 W
- LED configuration

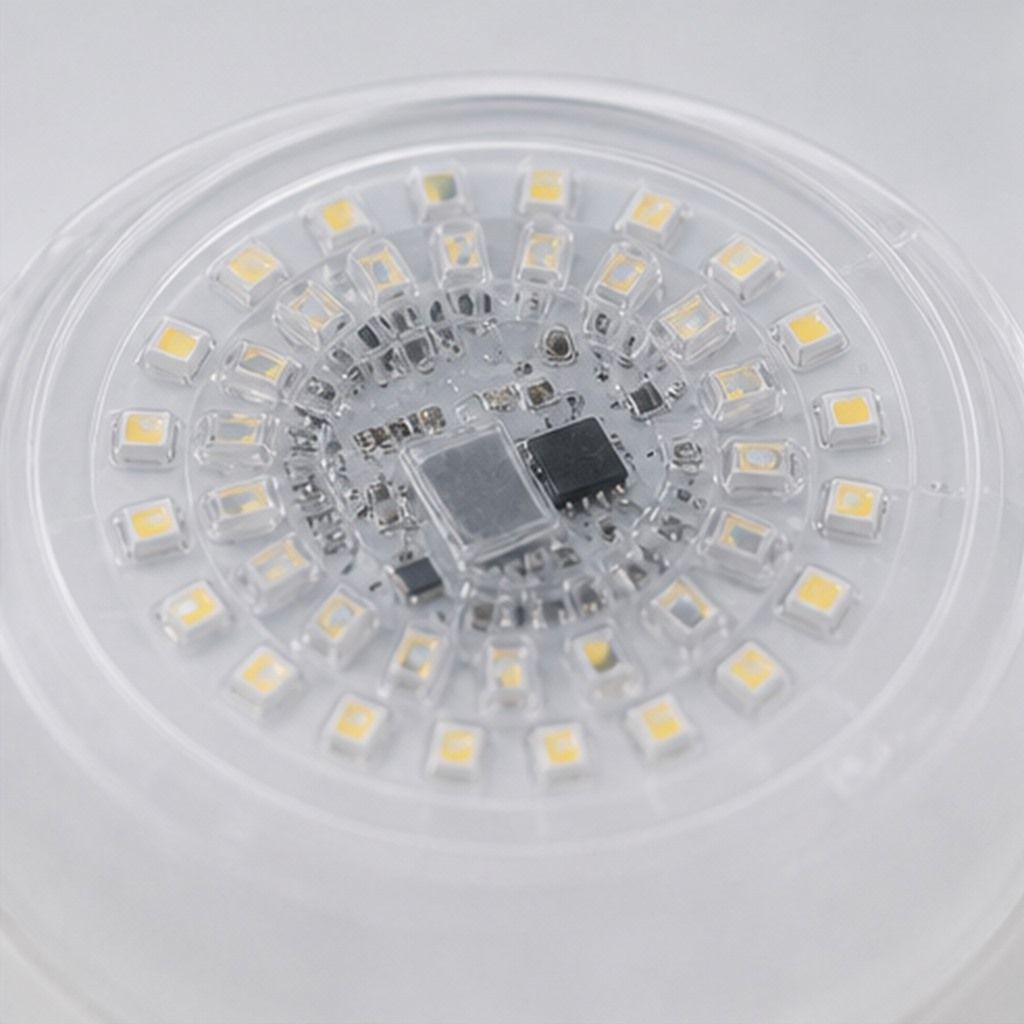

- 16 RGB + 16 white LEDs
- Colour control

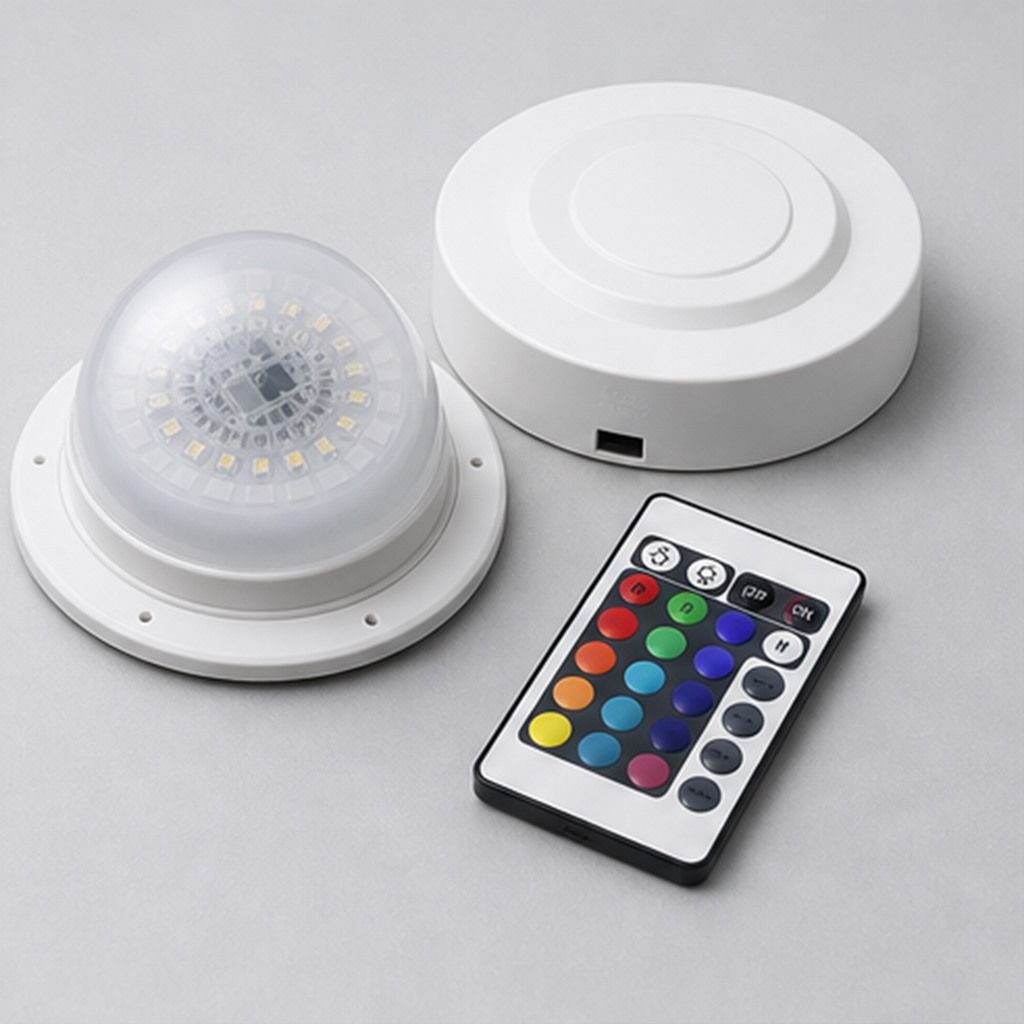

- Remote control / button, 16 colours
- Dynamic modes
- Flash, strobe, fade, smooth
- Typical operation
- Approx. 4–6 h charge, 8–12 h runtime*
*Runtime varies with brightness, mode, battery configuration and operating conditions. Waterproof performance requires correct product integration and sealing.
Product video
See VC-LI117 in operation.
Real product footage selected from the matching module and application video library.
Integration
Made to become part of your product.
The module installs inside translucent PE shells, acrylic forms and purpose-built enclosures. We can review mounting position, light diffusion, control access, charging access and battery capacity against your product design.
- PE rotational-moulded furniture and décor
- Acrylic and translucent product housings
- Event, hospitality and outdoor applications
- OEM LED layout, battery and control options
Replacing a failed light in existing illuminated furniture? Compatibility depends on the original opening, mounting points, installation depth, charging method and electrical requirements.
Check replacement compatibility →Same diameter
Alternative 117 mm configurations
Built around your product
