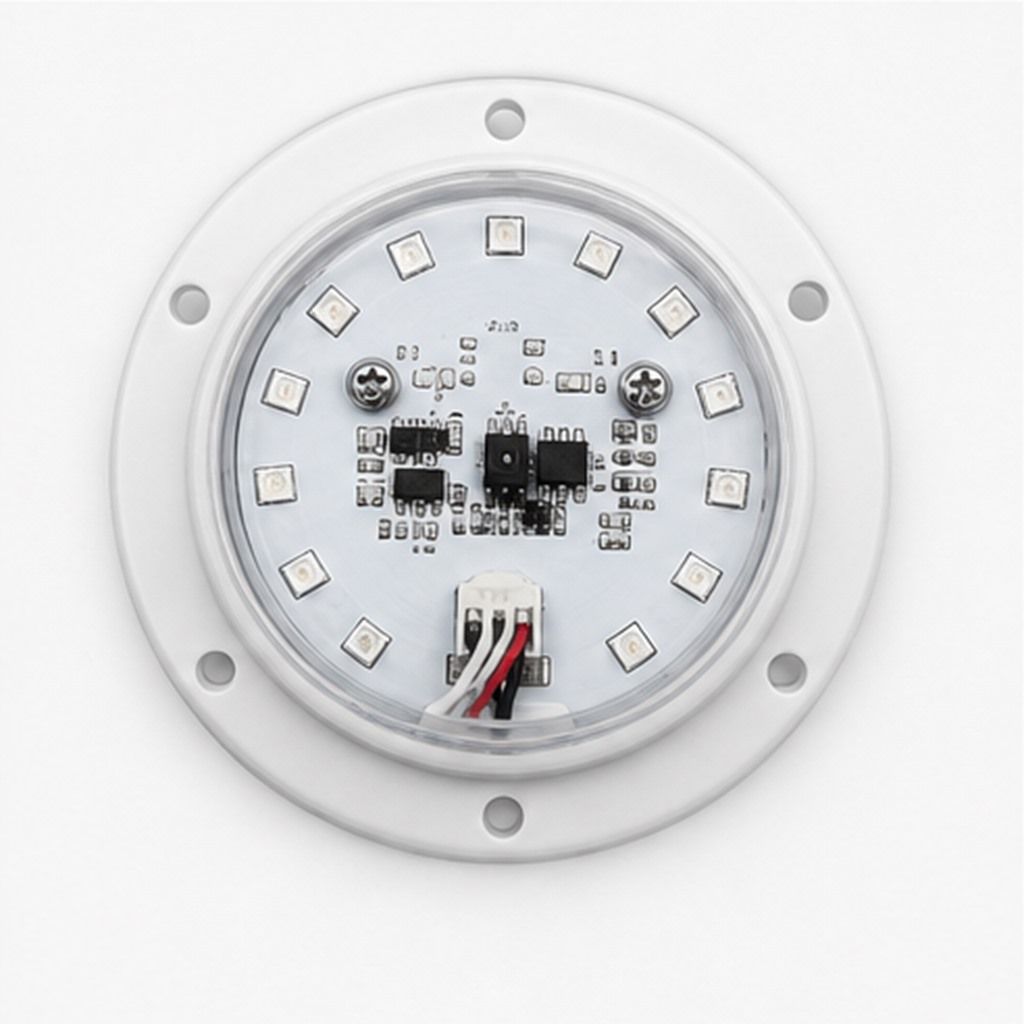

VC-L117-D01 117 mm RGBW LED circuit board

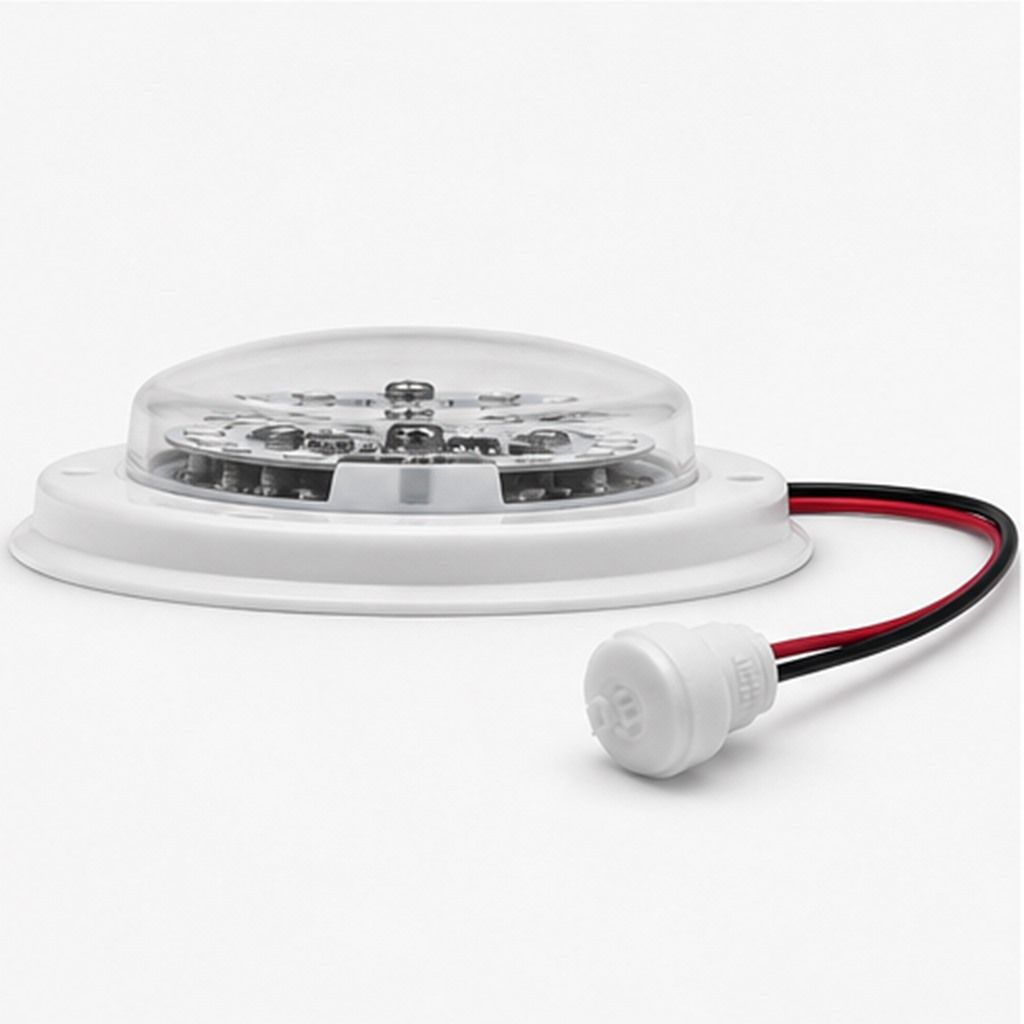

VC-L117-D01 side profile with external charging lead

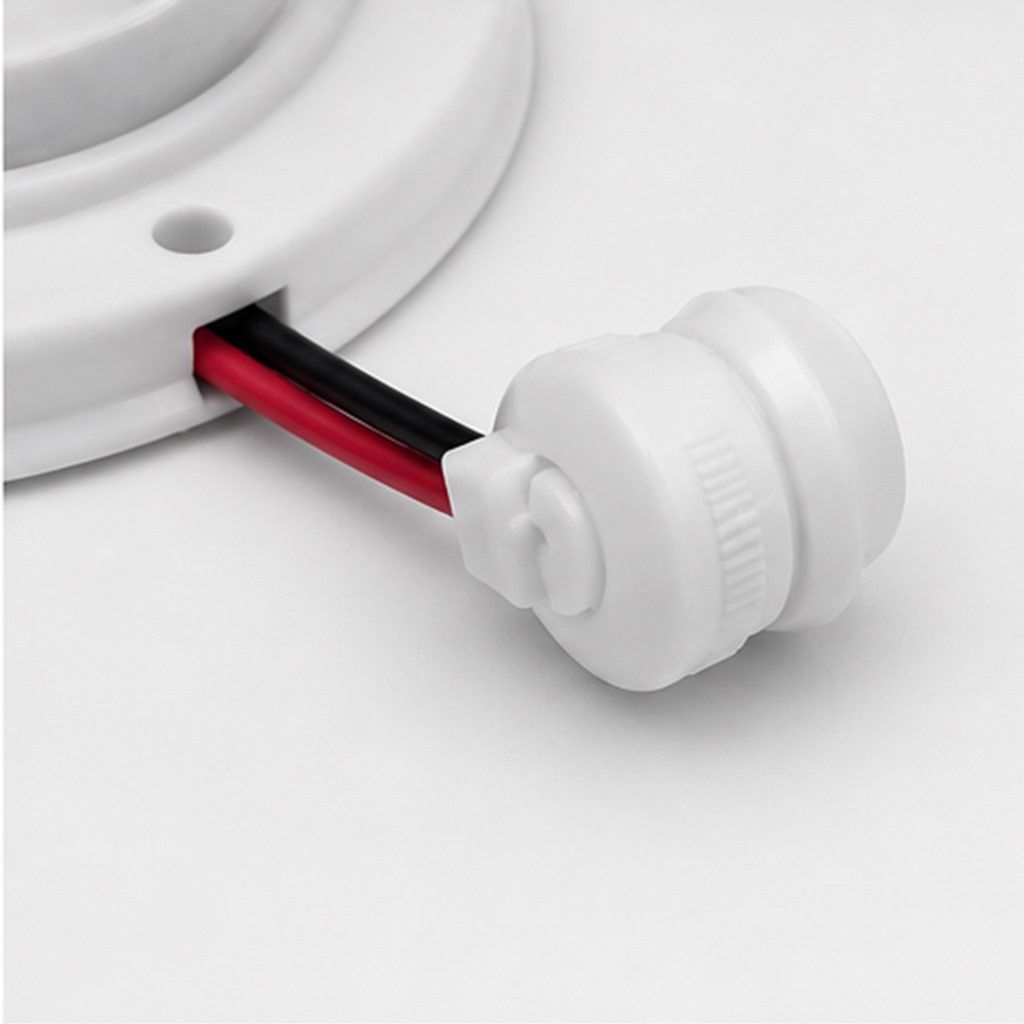

VC-L117-D01 side charging connector close-up

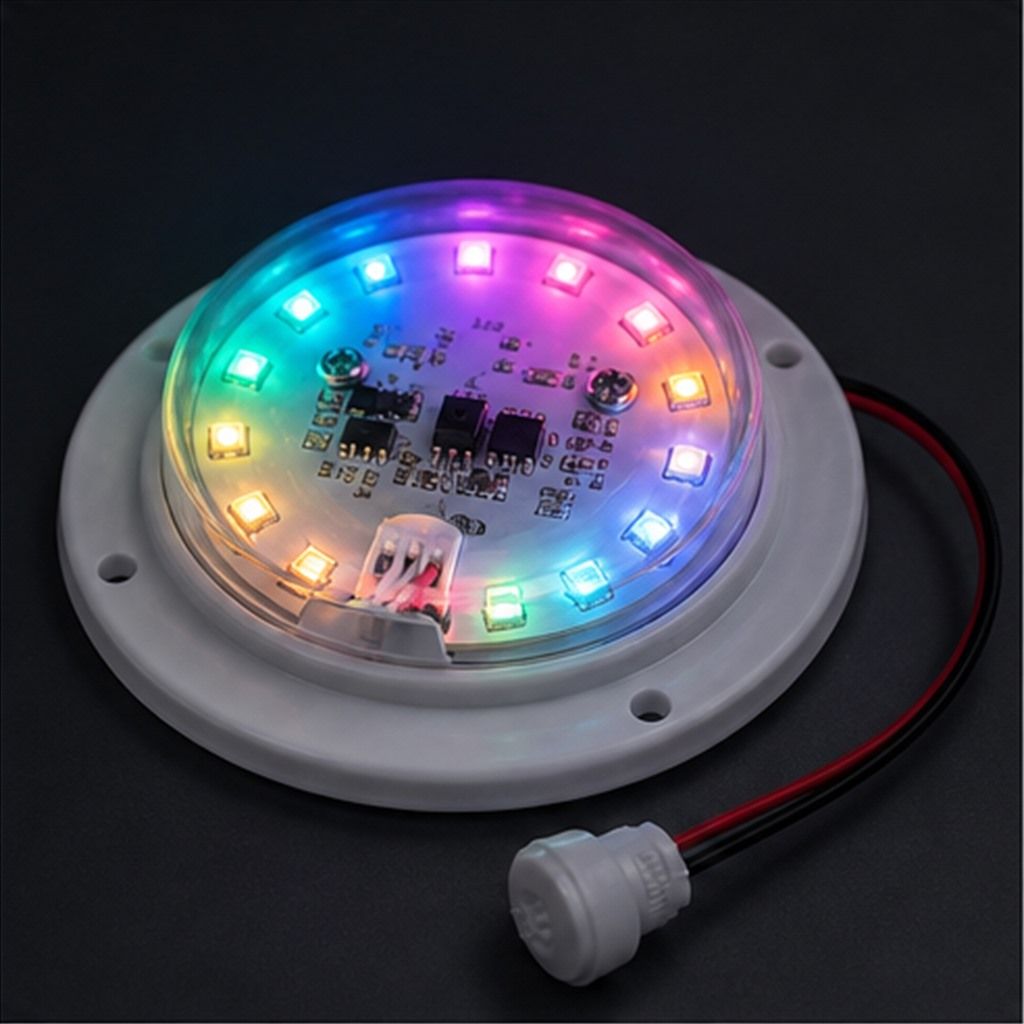

VC-L117-D01 RGBW LED module illuminated with multiple colours

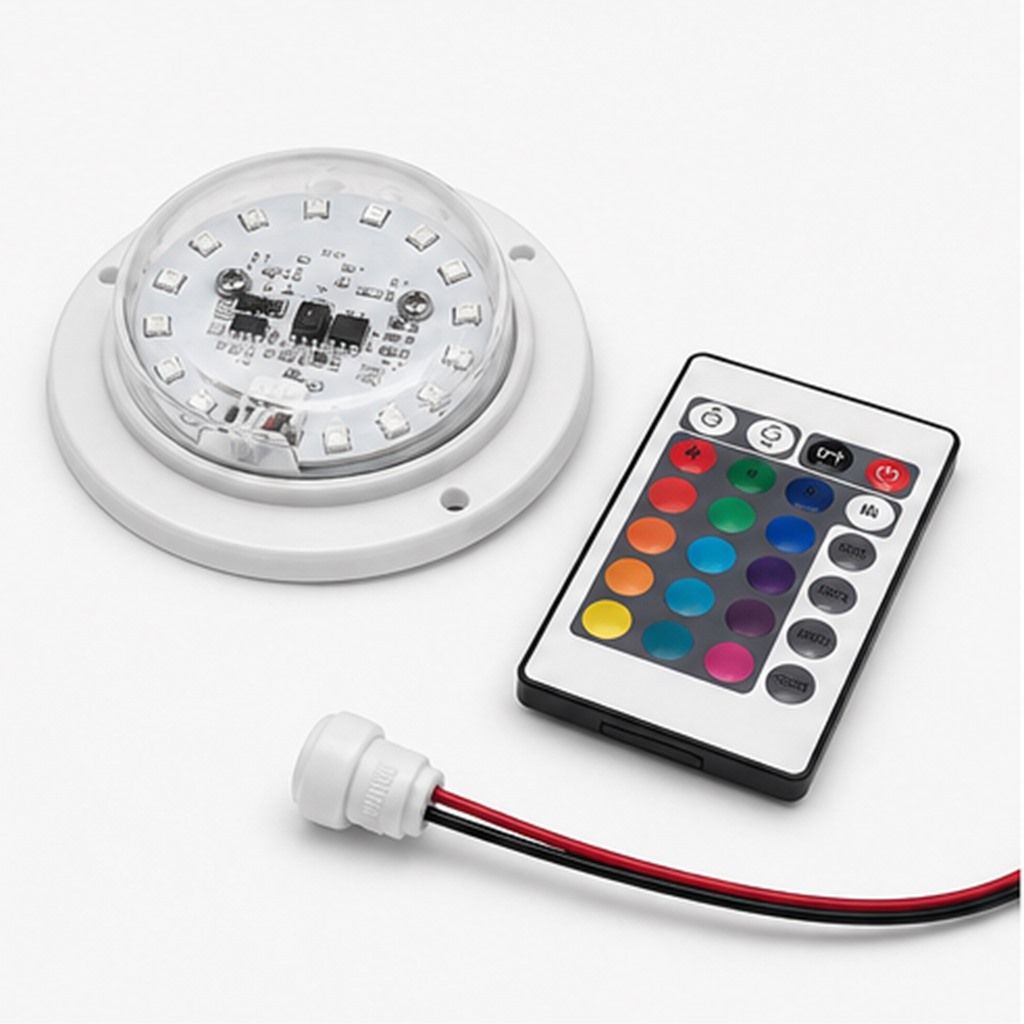

VC-L117-D01 module with remote control and side charging lead

LED Modules / Ø 117 mm

VC-L117-D01

117 mm Side Direct-Charge LED Light Module

VC-L117-D01 provides RGBW internal lighting with a separate side-access charging port for large illuminated ice buckets, bar counters, tall tables and chairs. It makes charging easier when the underside is difficult to reach. Confirm the mounting dimensions, internal depth and cable route for each product.

Common applications: internal lighting for large illuminated ice buckets; side-access charging for illuminated bar counters; rechargeable lighting for tall tables and chairs.

US$15.65 / pcReference unit price for a 100-piece order · EXWSamples and smaller orders are welcome. Ask us for the applicable price; shipping and taxes are excluded.
Direct chargeIn stockIP65 waterproof rating

What's included

The reference price includes the standard items listed below.

  • LED module with battery
  • Remote control
  • Matching charger
  • External charging port and connecting lead
Diameter
Ø 117 mm
Battery
1,800 mAh
Voltage
4.2 V
Power
3.5 W
LED configuration
16 RGBW LEDs
Colour control
Remote control / button, 16 colours
Dynamic modes
Flash, strobe, fade, smooth
Typical operation
Approx. 4–6 h charge, 8–12 h runtime*

Project options

Control: IR standard; RF, DMX, Wi-Fi and Bluetooth options can be reviewed for suitable models.

Mounting: Confirm the fixing structure and sealing parts for this module against your product housing. For screw-fixed versions, match the bottom mounting-hole pattern and correctly seat the sealing ring.

White light: Warm white, neutral white or cool white can be specified.

Custom remote panel: Available for OEM orders with a 300-piece MOQ.

*Runtime varies with brightness, mode, battery configuration and operating conditions. Waterproof performance requires correct product integration and sealing.

Request quoteWhatsApp us

Replacing a light in existing furniture? Check compatibility before choosing a module →

Product video

See VC-L117-D01 in operation.

Real product footage selected from the matching module and application video library.

Integration

Made to become part of your product.

The module installs inside translucent PE shells, acrylic forms and purpose-built enclosures. We can review mounting position, light diffusion, control access, charging access and battery capacity against your product design.

  • PE rotational-moulded furniture and décor
  • Acrylic and translucent product housings
  • Event, hospitality and outdoor applications
  • OEM LED layout, battery and control options

Replacing a failed light in existing illuminated furniture? Compatibility depends on the original opening, mounting points, installation depth, charging method and electrical requirements.

Check replacement compatibility →

Need CE, EMC, LVD, RoHS, waterproof, battery or adapter records for your selected configuration? Review the available LED module quality and compliance documents →
