LED Modules / Ø 45 mm

VC-LS45

45 mm Mini Rechargeable RGBW LED Module

VC-LS45 is Vcan's smallest standard rechargeable LED module for compact translucent products where installation space is limited. The 45 mm housing combines RGBW colour effects, IR control and a choice of Type-C or DC charging interface for suitable production and replacement projects.

Common applications: 45 mm mini RGBW LED module for small acrylic displays; compact rechargeable LED light for portable decorative lamps; small LED kit for translucent signs, ornaments and display products; replacement LED component for compatible compact light housings.

US$5.58 / pcReference unit price for a 100-piece order · EXWSamples and smaller orders are welcome. Ask us for the applicable price; shipping and taxes are excluded.
Direct chargeIn stockIP65 waterproof ratingMini format

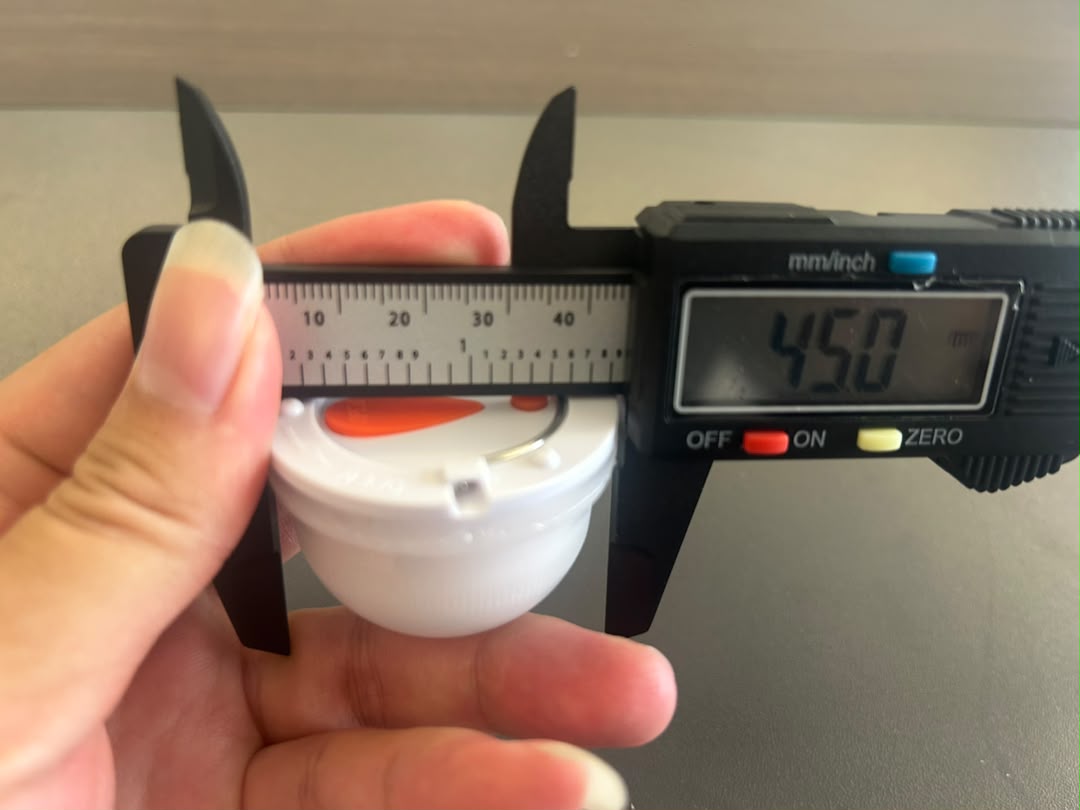

Diameter
Ø 45 mm
Charging interface
Type-C or DC (choose one)
Battery
300 mAh
Voltage
5 V
Power
0.5 W
LED configuration
0.5 W white light + RGBW colour LEDs
Colour control
Remote control / button, 16 colours
Dynamic modes
Flash, strobe, fade, smooth
Typical operation
Approx. 4–6 h charge, 8–12 h runtime*

Configuration: The specifications shown are the standard reference configuration. LED layout, battery capacity and related electrical details can be adjusted for suitable OEM projects.

Project options

Control: IR standard; RF, DMX, Wi-Fi and Bluetooth options can be reviewed for suitable models.

Mounting: Strong magnet, weak magnet or non-magnetic configurations are available on request.

White light: Warm white, neutral white or cool white can be specified.

Custom remote panel: Available for OEM orders with a 300-piece MOQ.

*Runtime varies with brightness, mode, battery configuration and operating conditions. Waterproof performance requires correct product integration and sealing.

Request quoteWhatsApp us

Product video

See VC-LS45 in operation.

Real product footage selected from the matching module and application video library.

Integration

Made to become part of your product.

The module installs inside translucent PE shells, acrylic forms and purpose-built enclosures. We can review mounting position, light diffusion, control access, charging access and battery capacity against your product design.

  • PE rotational-moulded furniture and décor
  • Acrylic and translucent product housings
  • Event, hospitality and outdoor applications
  • OEM LED layout, battery and control options

Replacing a failed light in existing illuminated furniture? Compatibility depends on the original opening, mounting points, installation depth, charging method and electrical requirements.
