VC-LS60
60 mm Compact Direct-Charge LED Light Module
VC-LS60 is a compact rechargeable RGBW light source for small acrylic displays, decorative housings and portable lamps where installation space is limited. Its 60 mm format, 1.8 W standard configuration and choice of USB-C or DC charging support OEM integration and compatible replacement work.
Common applications: 60 mm compact RGBW LED light for acrylic displays; small rechargeable LED unit for portable table lamps; IP65 LED module for translucent ornaments and display products; replacement LED component for compatible compact housings.
- Diameter
- Ø 60 mm

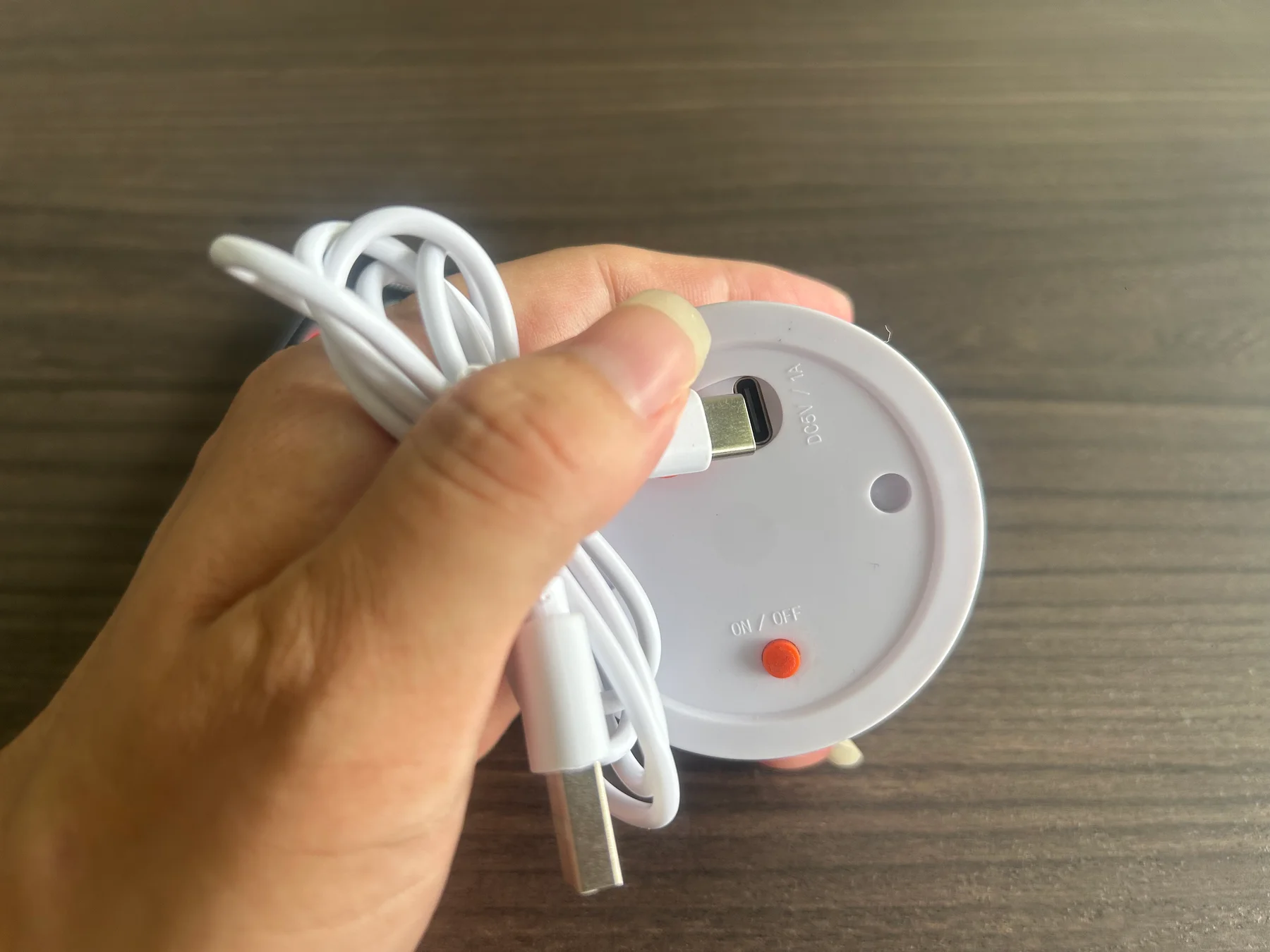

- Charging interface
- USB-C or DC (choose one)
- Battery
- 1,000 mAh
- Voltage
- 5 V
- Power
- 1.8 W
- LED configuration

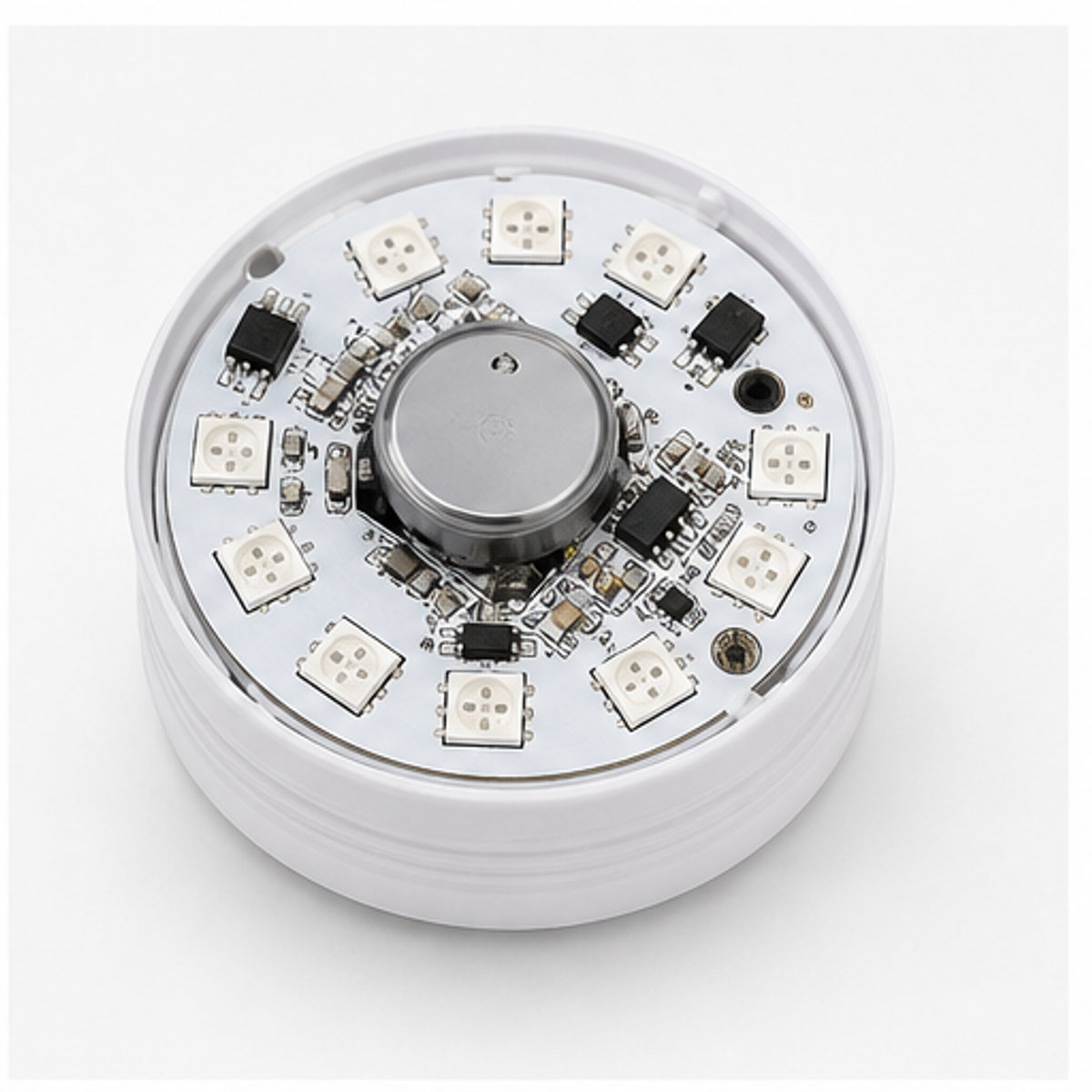

- 6 RGB + 6 white LEDs
- Colour control

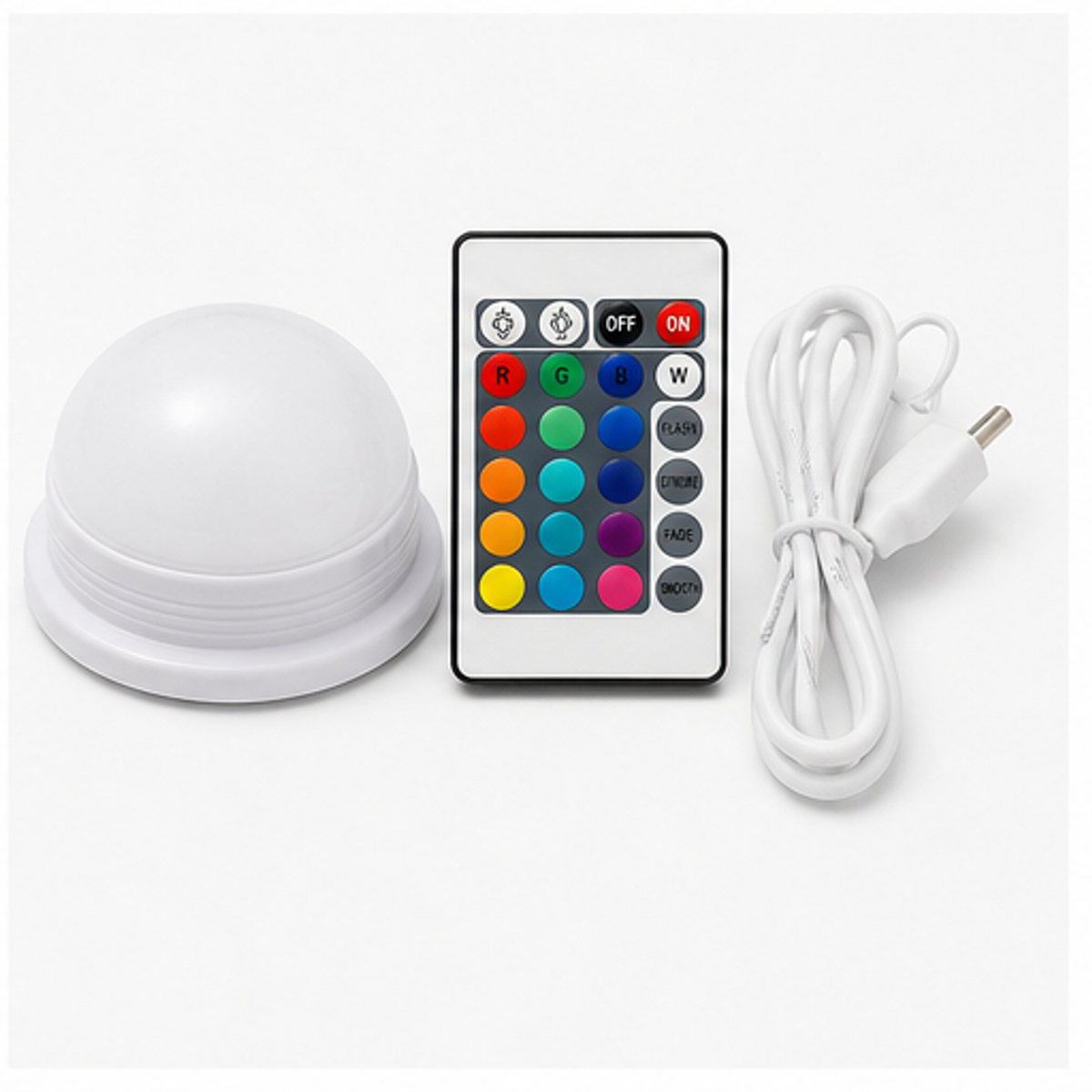

- Remote control / button, 16 colours
- Dynamic modes
- Flash, strobe, fade, smooth
- Typical operation
- Approx. 4–6 h charge, 8–12 h runtime*
Configuration: The specifications shown are the standard reference configuration. LED layout, battery capacity and related electrical details can be adjusted for suitable OEM projects.
*Runtime varies with brightness, mode, battery configuration and operating conditions. Waterproof performance requires correct product integration and sealing.
Replacing a light in existing furniture? Check compatibility before choosing a module →
Installation reference · real measurement photos

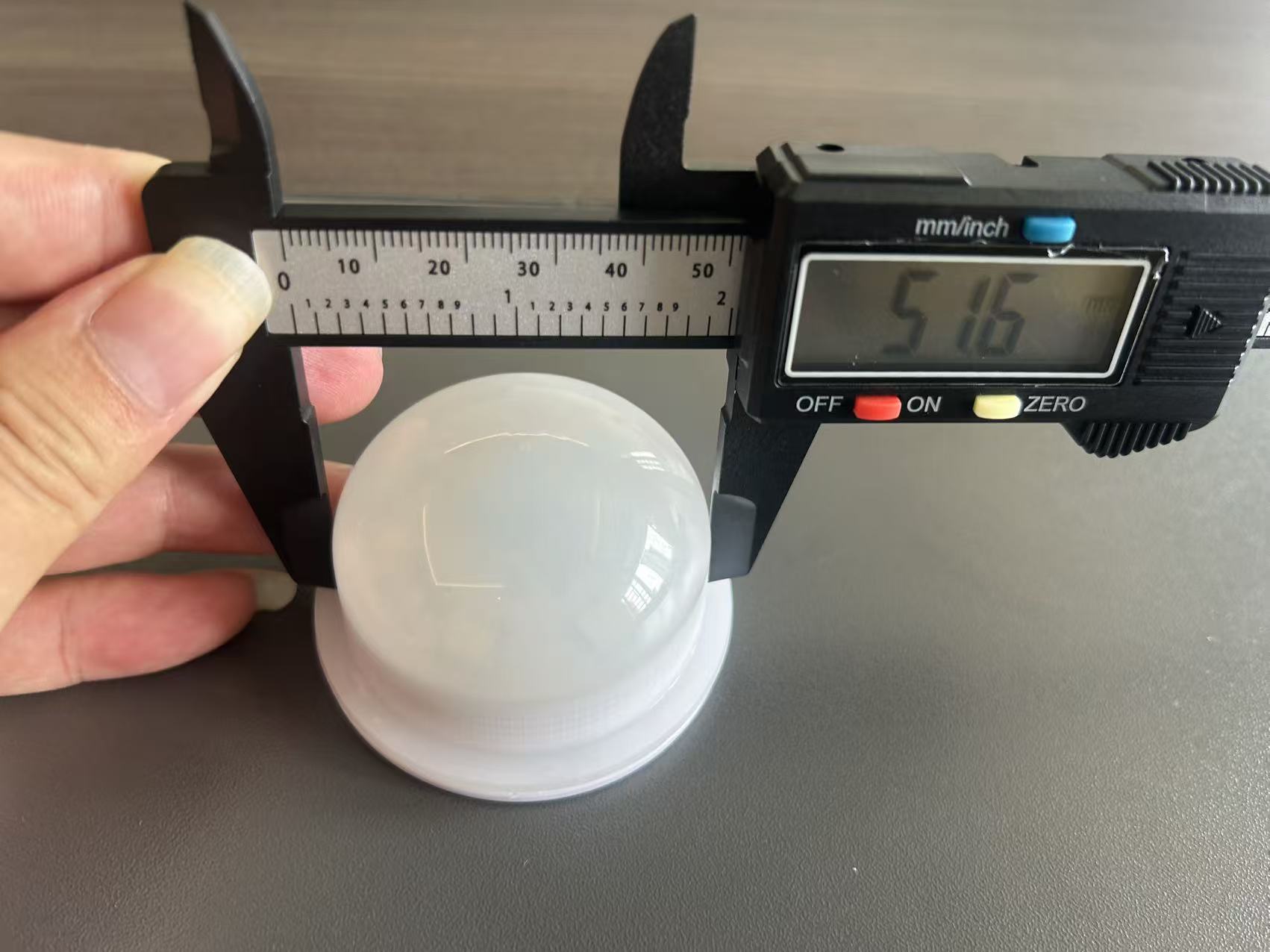

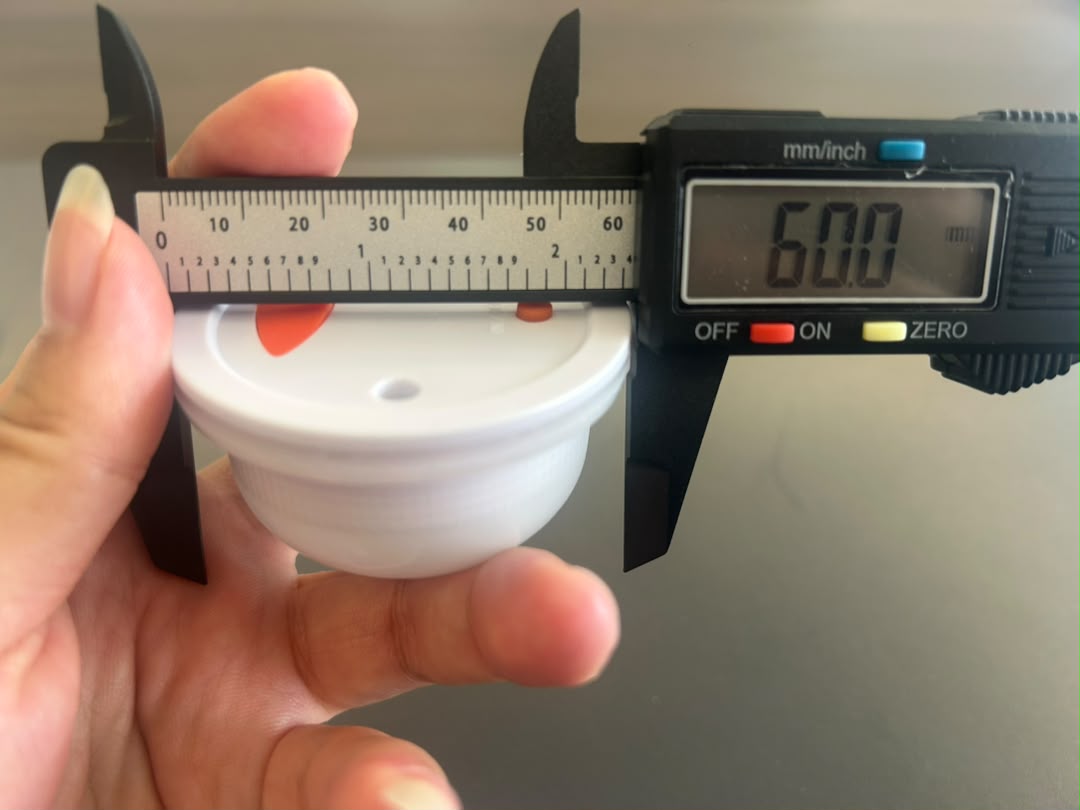

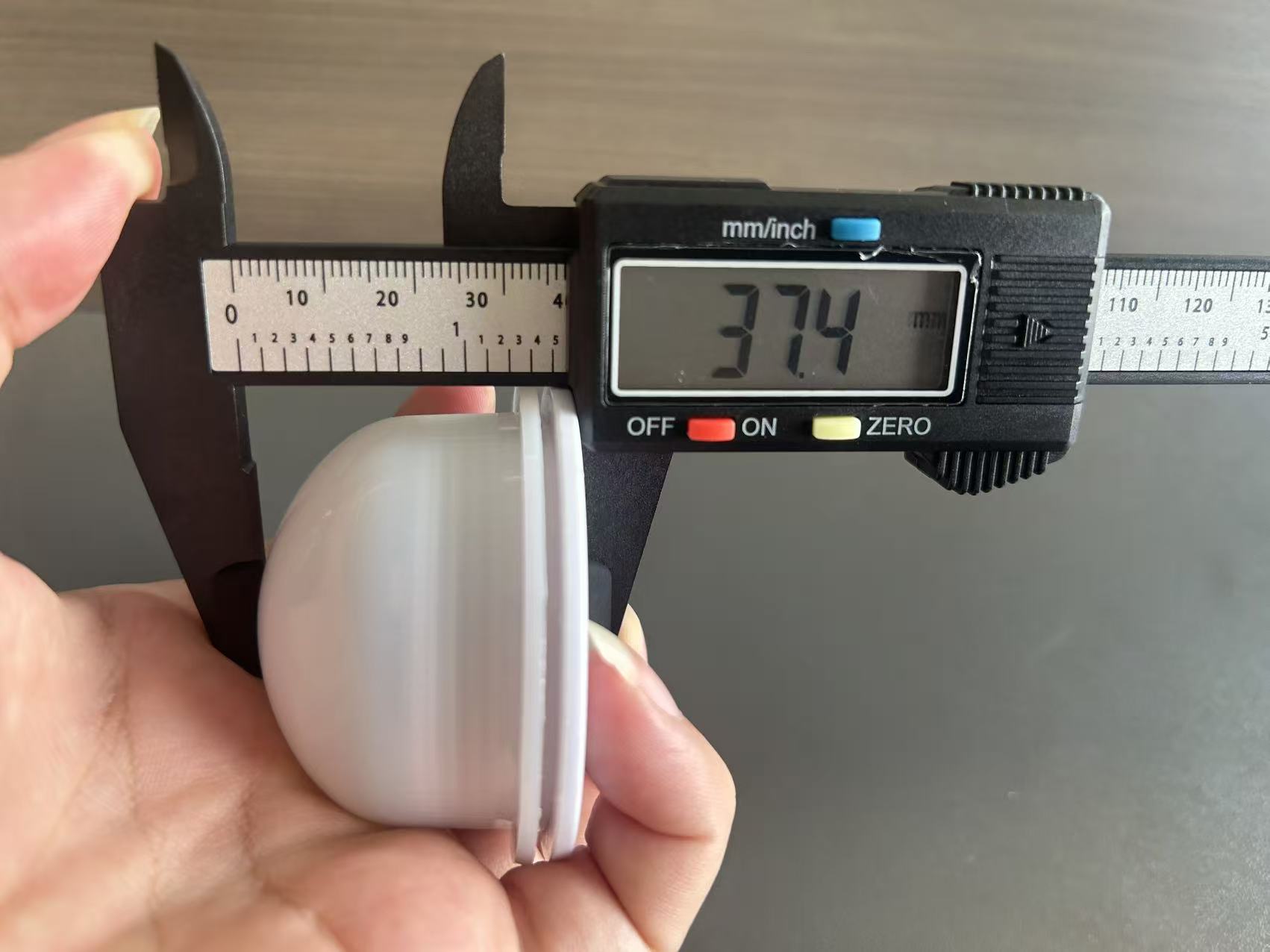

Measured dimensions of a VC-LS60 round-cover sample.
Check the complete shape, not only the nominal module diameter. These photographs record one sample, not guaranteed dimensions for every configuration.
Sample reference—not a tooling drawing. Cover width is not the required housing opening. Confirm mounting-hole positions, clearance, tolerances and charging access for the selected configuration against the approved sample and drawing before tooling. Photos can be opened for a closer look.
Product video
See VC-LS60 in operation.
Real product footage selected from the matching module and application video library.
Integration
Made to become part of your product.

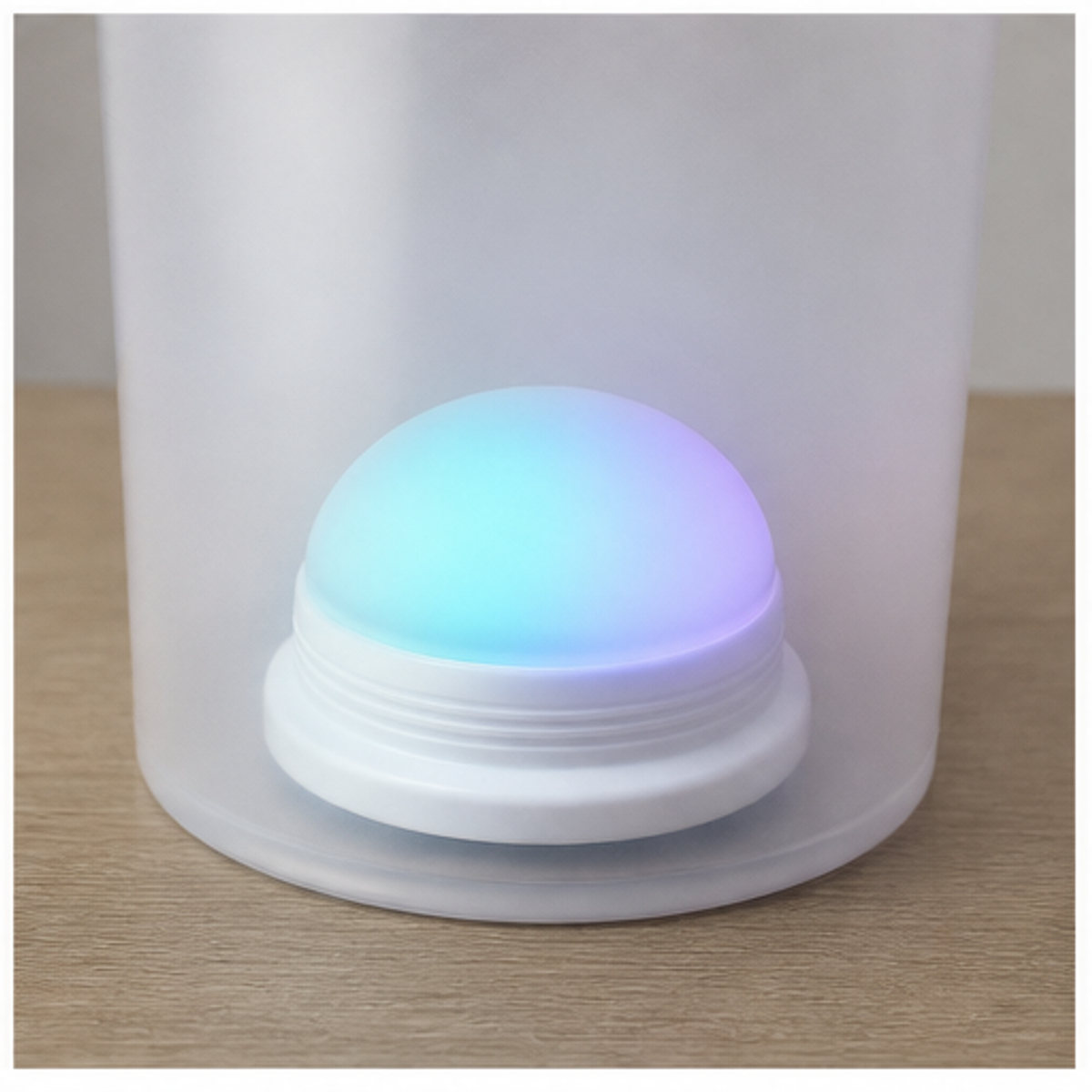

The module installs inside translucent PE shells, acrylic forms and purpose-built enclosures. We can review mounting position, light diffusion, control access, charging access and battery capacity against your product design.
- PE rotational-moulded furniture and décor
- Acrylic and translucent product housings
- Event, hospitality and outdoor applications
- OEM LED layout, battery and control options
Replacing a failed light in existing illuminated furniture? Compatibility depends on the original opening, mounting points, installation depth, charging method and electrical requirements.
Check replacement compatibility →Need CE, EMC, LVD, RoHS, waterproof, battery or adapter records for your selected configuration? Review the available LED module quality and compliance documents →
Check threaded mounting, fixed rings and sealing before designing the shell →
