VC-LS90
90 mm Rechargeable RGBW LED Light Module
VC-LS90 is a versatile mid-size rechargeable LED light module for compact illuminated furniture, PE planters, portable lamps and compatible replacement projects. The standard configuration combines 8 RGB and 8 white LEDs with a 2,200 mAh battery, while other configurations can be reviewed for OEM requirements.
Common applications: 90 mm RGBW LED module for compact illuminated furniture; rechargeable LED light for PE planters, cubes and decorative products; replacement LED unit for compatible event-rental products; OEM light engine for translucent housings and portable lamps.
- Diameter
- Ø 90 mm
- Charging interface
- Type-C or DC (choose one)
- Battery
- 2,200 mAh
- Voltage
- 5 V
- Power
- 3.2 W
- LED configuration
- 8 RGB + 8 white LEDs
- Colour control
- Remote control / button, 16 colours
- Dynamic modes
- Flash, strobe, fade, smooth
- Typical operation
- Approx. 4–6 h charge, 8–12 h runtime*
Configuration: The specifications shown are the standard reference configuration. LED layout, battery capacity and related electrical details can be adjusted for suitable OEM projects.
*Runtime varies with brightness, mode, battery configuration and operating conditions. Waterproof performance requires correct product integration and sealing.
Replacing a light in existing furniture? Check compatibility before choosing a module →
Installation reference · real measurement photos

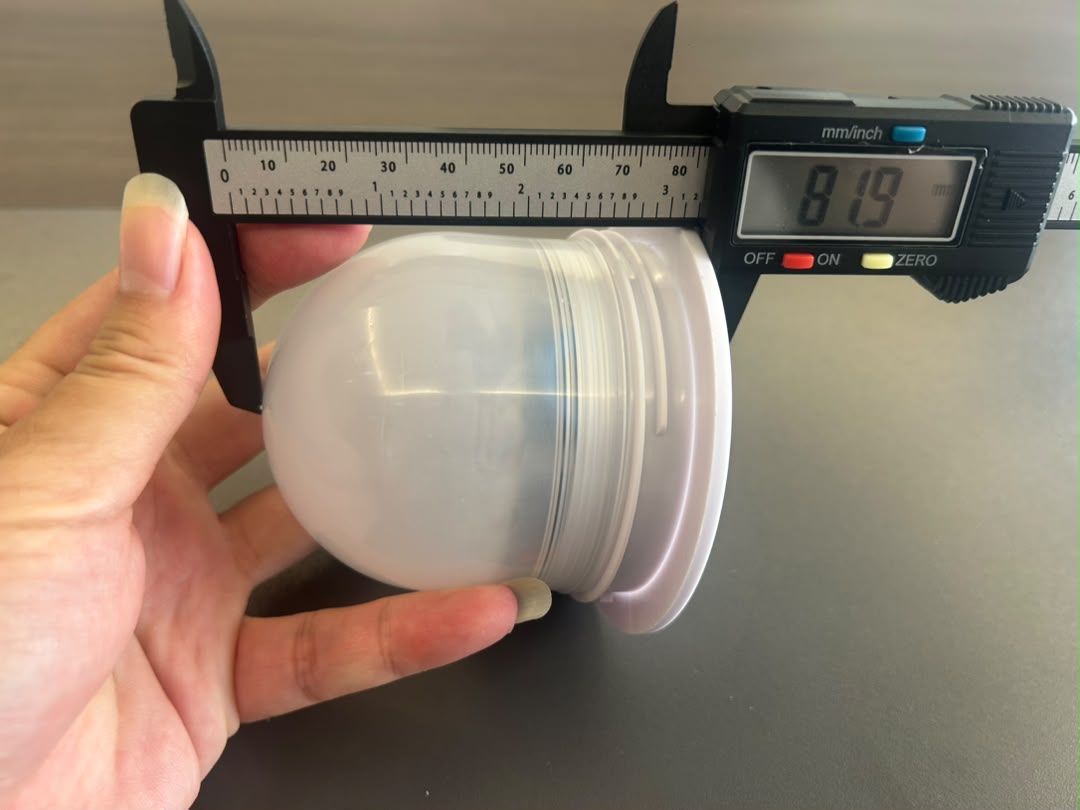

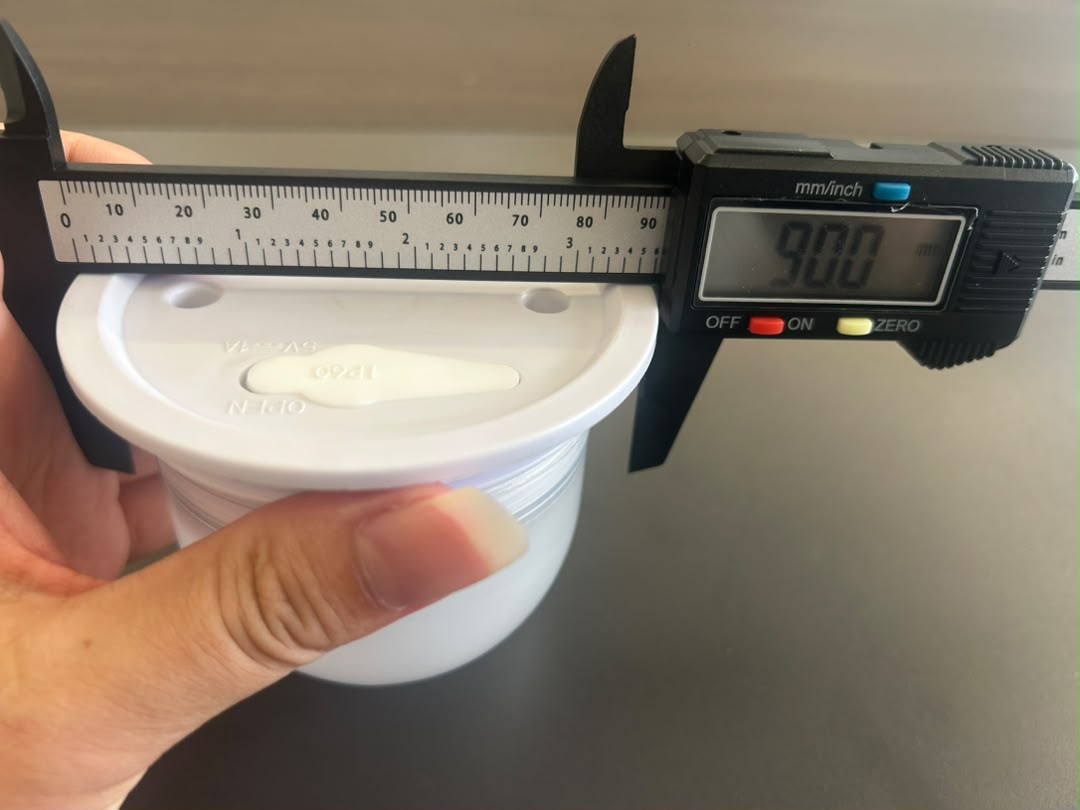

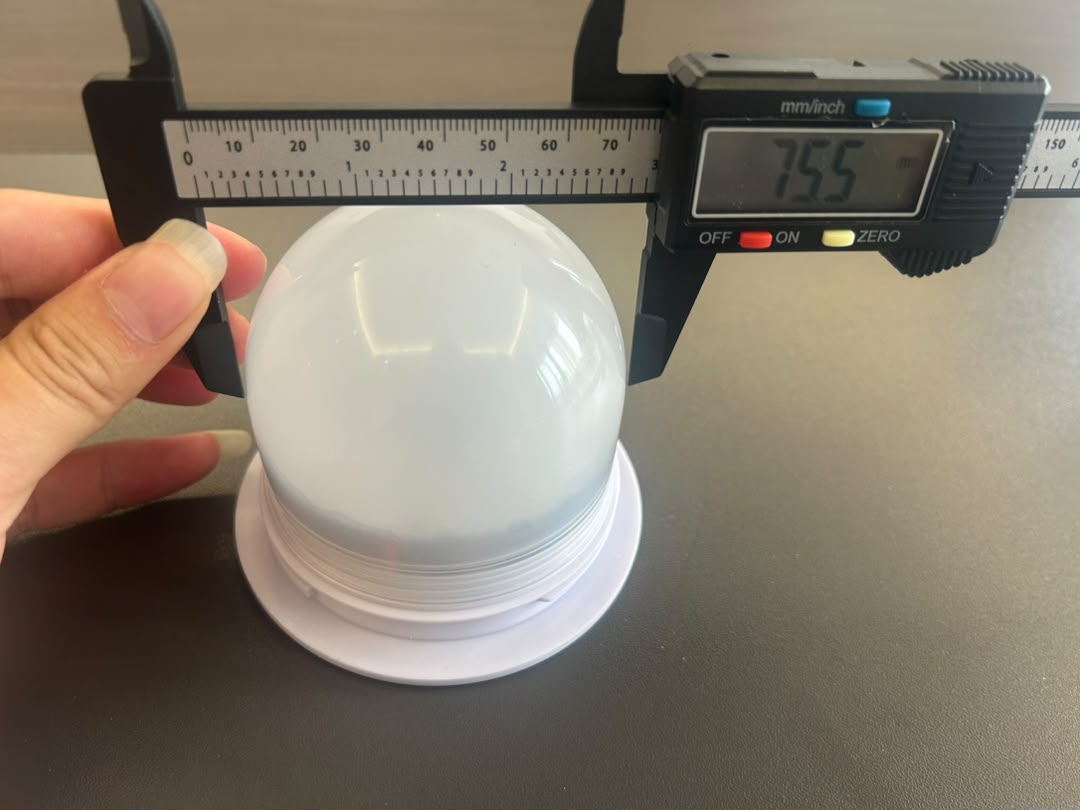

Measured dimensions of a VC-LS90 round-cover sample.
Check the complete shape, not only the nominal module diameter. These photographs record one sample, not guaranteed dimensions for every configuration.
Sample reference—not a tooling drawing. Cover width is not the required housing opening. Confirm mounting-hole positions, clearance, tolerances and charging access for the selected configuration against the approved sample and drawing before tooling. Photos can be opened for a closer look.
Product video
See VC-LS90 in operation.
Real product footage selected from the matching module and application video library.
Integration
Made to become part of your product.
The module installs inside translucent PE shells, acrylic forms and purpose-built enclosures. We can review mounting position, light diffusion, control access, charging access and battery capacity against your product design.
- PE rotational-moulded furniture and décor
- Acrylic and translucent product housings
- Event, hospitality and outdoor applications
- OEM LED layout, battery and control options
Replacing a failed light in existing illuminated furniture? Compatibility depends on the original opening, mounting points, installation depth, charging method and electrical requirements.
Check replacement compatibility →Need CE, EMC, LVD, RoHS, waterproof, battery or adapter records for your selected configuration? Review the available LED module quality and compliance documents →
Check threaded mounting, fixed rings and sealing before designing the shell →
