VC-SP120
120 mm Twist-Out Removable RGBW LED Module

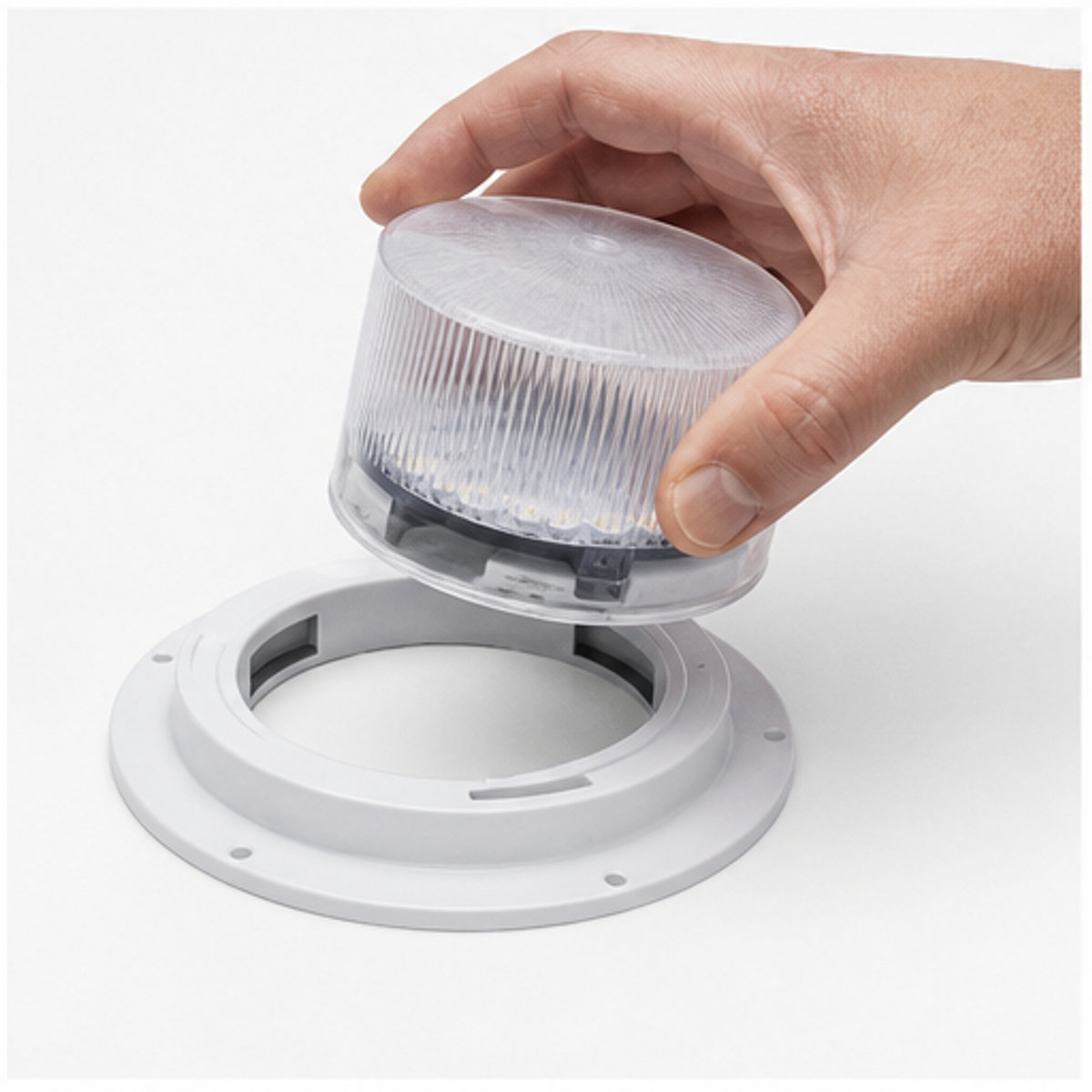

VC-SP120 lets the complete light module twist out without tools for charging through its bottom DC socket, while the mounting ring stays on the furniture. Check the ring fit, removal clearance and remote-control configuration before ordering for an existing product.
Common applications: 120 mm rechargeable LED light for rotomoulded furniture; 120 mm replacement LED unit for event furniture rental; 120 mm LED light module for acrylic displays; 120 mm rechargeable LED core for portable lamps.
- Diameter
- Ø 120 mm
- Battery
- 4,400 mAh
- Voltage
- 5 V
- Power
- 5.8 W
- LED configuration
- 24 RGB + 24 white LEDs
- Colour control
- Remote control / button, 16 colours
- Dynamic modes
- Flash, strobe, fade, smooth
- Typical operation
- Approx. 4–6 h charge, 8–12 h runtime*
*Runtime varies with brightness, mode, battery configuration and operating conditions. Waterproof performance requires correct product integration and sealing.
Replacing a light in existing furniture? Check compatibility before choosing a module →
Product video
See VC-SP120 in operation.
Real product footage selected from the matching module and application video library.
Integration
Made to become part of your product.
The module installs inside translucent PE shells, acrylic forms and purpose-built enclosures. We can review mounting position, light diffusion, control access, charging access and battery capacity against your product design.
- PE rotational-moulded furniture and décor
- Acrylic and translucent product housings
- Event, hospitality and outdoor applications
- OEM LED layout, battery and control options
Replacing a failed light in existing illuminated furniture? Compatibility depends on the original opening, mounting points, installation depth, charging method and electrical requirements.
Check replacement compatibility →Need CE, EMC, LVD, RoHS, waterproof, battery or adapter records for your selected configuration? Review the available LED module quality and compliance documents →
See twist-out charging and the completed 300-unit rental-customer order →
Check threaded mounting, fixed rings and sealing before designing the shell →
Built around your product
