Removable LED Modules: Twist Out to Recharge

A rental customer wanted the same twist-out mounting.

A returning rental-business customer had previously bought Vcan LED modules and illuminated furniture. When discussing another purchase, he specifically asked whether the new lights would match his existing remote controls and the mounting type he already used: modules that could be removed without tools, simply by twisting.

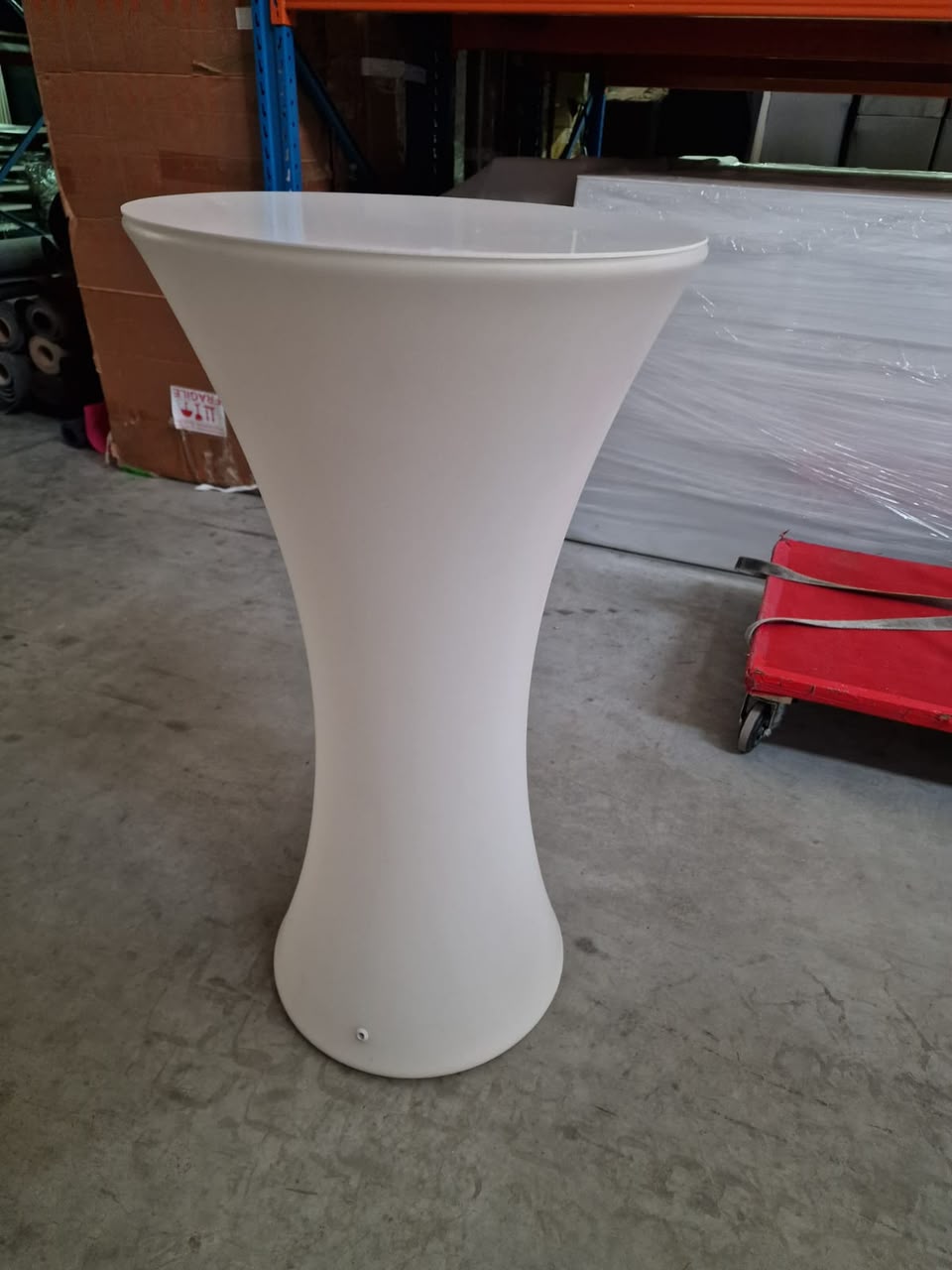

The customer also explained that his older furniture had additional side charging ports, but he did not need those extra connections because the modules were removable. His concern was not just the light output; it was keeping a familiar charging and handling routine across the products he managed.

The model was VC-SP120. The customer subsequently placed an order for 300 units, and Vcan completed shipment of those modules.

Remove the light, charge it separately, then put it back.

1. Reach the installed module. Position the furniture safely and support it as needed. The finished product must leave enough room for a hand to operate the twist-out unit.

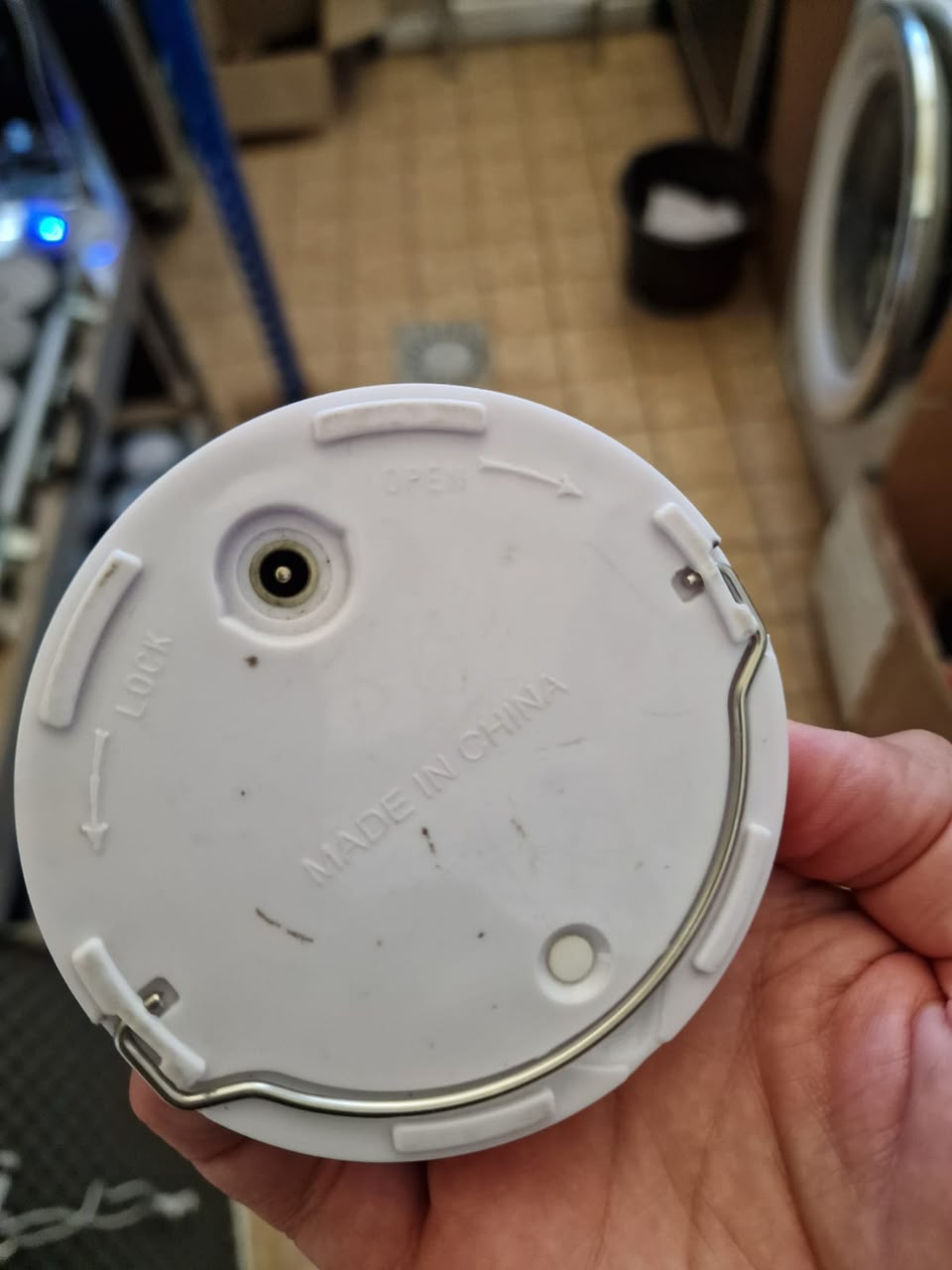

2. Release the module from the ring. Follow the OPEN/LOCK markings and the instructions for the supplied assembly. The ring stays fixed to the furniture; routine module removal does not require unscrewing that ring.
3. Charge through the bottom DC socket. Take the complete light module to the charging location and use its approved charger. Do not select an adapter merely because its plug fits.
4. Disconnect and reinstall. After charging according to the supplied instructions, disconnect the charger, check the mounting and sealing parts, and lock the module back into the ring. Confirm that it is secure before putting the furniture back into use.

Removal changes where charging takes place; it does not establish faster charging or a particular runtime. Agree those electrical requirements separately for the selected configuration.

Does the furniture still need a separate side charging port?

Not necessarily. If the module can be reached and removed comfortably, the DC connection on the module can provide the charging access. This customer explicitly preferred not to add a separate external side connection to the furniture he was discussing.

VC-SP120 is still a direct-charge module. The optional omission here concerns an additional charging port on the furniture shell, not the DC charging socket on the module itself.

That is not a rule for every product. A heavy item with awkward underside access may still make module removal inconvenient. Review the actual lifting, access and reinstallation process before choosing the structure, rather than assuming that a removable module eliminates all furniture handling.

Where the light should stay installed during charging, a different access arrangement may be more suitable. The side-charging ice-bucket case illustrates that alternative. Neither approach should be treated as universally better; the right choice depends on how the finished product is used.

Match the ring and the remote—not just the diameter.

For an existing rental fleet, a new module should be checked against the parts already in service. A 120 mm model reference alone does not establish that it fits an older mounting ring or responds to an existing remote.

• Mechanical fit: compare the ring engagement, module body, opening and installation depth. Check that staff can release and refit the light in the complete furniture.
• Charging equipment: identify the bottom socket and the approved adapter for that module configuration.
• Control compatibility: keep the existing remote and order reference available for checking. Identical-looking remotes can use different codes; see matching modules to an existing remote.
• Sealing and condition: review the ring, locking parts and any specified seals. Reinstallation alone does not prove the complete furniture is waterproof.

For a new product, review the mounting ring and removal clearance before finalising the shell. For an older product, send photos of the ring, module underside and remote rather than ordering from the furniture's outside appearance alone. Compare this separate-ring arrangement with modules threaded directly into a shell and screw-fixed installations.
